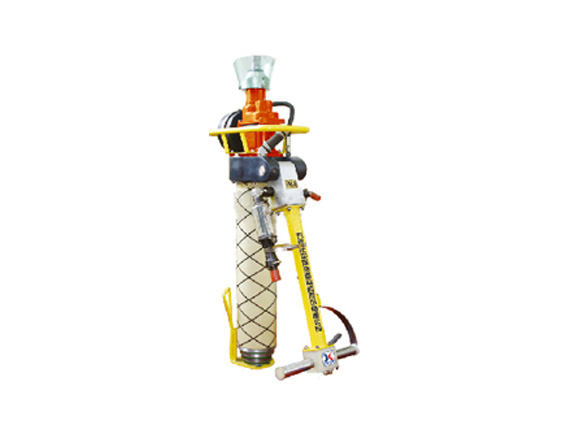

Product introduction
The MQT serial pneumatic rock drill can be used in mining the tunnel which is half coal and its hardness of f is under 8/9/10 and it is a combination of drilling, stirring and installing. The double exhaust and the latest sealing structure ensure the fast and free lift of the supporting leg which raises the working efficiency and the noise is reduced by the unique silence system. The principal axis of the drilling machine and the center coincide to ensure the direction of drilling, which is designed to ensure the support.
The MOT-130/3.2 is the pneumatic rock drill of biggest torque and highest working rate in China. That serial of pneumatic rock drill can be used with the 19/22 six square drill pipe wrench and drills made by our company to carry our the supporting task.
Performance and Parameters
|
Parameters |
MQT-90/2.3A |
MQT-100/3.1 |
MQT-110/2.8 |
MQT-120/3.0 |
MQT-130/3.2 |
||||||||||
|
Applicable air pressure(MPa) |
0.4-0.63 |
0.4-0.63 |
0.4-0.63 |
0.4-0.63 |
0.4-0.63 |
||||||||||
|
Rated air pressure(MPa) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
||||||||||
|
Flushing water pressure(MPa) |
0.6-1.2 |
0.6-1.2 |
0.6-1.2 |
0.6-1.2 |
0.6-1.2 |
||||||||||
|
Rated torque(N.m) |
90 |
100 |
110 |
120 |
130 |
||||||||||
|
Rated rotate speed(r/min) |
240 |
280 |
240 |
240 |
240 |
||||||||||
|
Idle propelling speed(mm/s) |
400 |
400 |
400 |
400 |
400 |
||||||||||
|
Max output power(kw) |
2.3 |
3.1 |
2.8 |
3 |
3.2 |
||||||||||
|
Idle rotate speed(r/min) |
650 |
900 |
700 |
700 |
700 |
||||||||||
|
Idle torque(N.m) |
230 |
180 |
230 |
240 |
240 |
||||||||||
|
Max. loading torque(N.m) |
220 |
170 |
220 |
230 |
230 |
||||||||||
|
Air consumption(m3/min) |
≤3.2 |
≤3.8 |
≤3.6 |
≤3.8 |
≤4.0 |
||||||||||
|
Noise(dB(A)) |
≤90 |
≤90 |
≤90 |
≤90 |
≤90 |
||||||||||
|
Leg type |
Ⅰ |
Ⅱ |
Ⅲ |
Ⅰ |
Ⅱ |
Ⅲ |
Ⅰ |
Ⅱ |
Ⅲ |
Ⅰ |
Ⅱ |
Ⅲ |
Ⅰ |
Ⅱ |
Ⅲ |
|
Leg propulsion(KN) |
5.2 |
6.7 |
9.8 |
5.2 |
6.7 |
9.8 |
5.2 |
6.7 |
9.8 |
5.2 |
6.7 |
9.8 |
5.2 |
6.7 |
9.8 |
|
Max. height(mm) |
2540 |
3020 |
3588 |
2566 |
3046 |
3614 |
2552 |
3032 |
3600 |
2552 |
3032 |
3600 |
2552 |
3032 |
3600 |
|
Min. height(mm) |
1163 |
1283 |
1425 |
1189 |
1309 |
1451 |
1175 |
1295 |
1437 |
1175 |
1295 |
1437 |
1175 |
1295 |
1437 |
|
Weight(kg) |
46 |
48 |
50 |
45 |
47 |
49 |
48 |
50 |
52 |
48 |
50 |
52 |
48 |
50 |
52 |
Corollary drill tools
Hexagonal drill rod
|
Specification(mm) |
B19、B22 |
|
Screw Thread Size |
M14×1.5 Rectangular Thread16 M16×2 Rectangular Thread18 |
|
Length |
Can Be Customized As Per Requirements |
Drill bit
|
Specification(mm) |
Φ27、Φ28、Φ30、Φ32、Φ38、Φ42、Φ44 |
|
Screw Size |
M14×15 M16×2 |
