Appliance
ZDY series drill rig is widely used in different angles of drilling like water exploring, water injection, gas drainage and geological exploring etc. Specially used in underground coal mine horizontal drilling but can be adjusted within ±90°. Main fittings are hard alloy, or PDC drill bit for boring, attached different diameter bits fit different requirements of drill exploring.

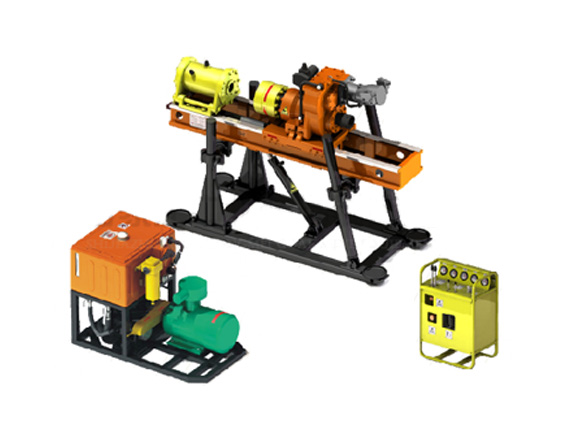

Totally hydraulic drive, divided into three independent parts: main frame, pump station, control unit. The main frame can be disassembled into smaller one to carry easily.
Structure and characteristic:
This serials of drill machine takes complete hydraulic structure, it can be divided into three parts: main frame, pump station and control platform, main frame is split type structure which can be further disassembled for easy carrying.
Performance and Parameters
|
Parameters |
ZDY-660 |
ZDY-1200S |
ZDY-2000S |
|
Drill depth(m) |
150/100 |
200 |
300/100 |
|
Boring inclined angles(°) |
±90 |
±90 |
±90 |
|
Drill diameter(mm) |
Φ56~Φ108 |
Φ65~Φ108 |
Φ94~Φ200 |
|
No-load speed(r/min) |
low speed gear（10-150）/ high speed gear （10-300） |
80-280 |
10-300 |
|
Rated torque(N.m) |
660 |
1200 |
2000 |
|
Rated rotate speed(r/min) |
140/270 |
140/270 |
76 |
|
Feeding stroke(mm) |
650 |
650 |
600 |
|
Feeding force(kN) |
29 |
36 |
105 |
|
Pulling out force(kN) |
42 |
52 |
70 |
|
Max. feeding speed(mm/min) |
5000 |
5000 |
3500 |
|
Min. feeding speed(mm/min) |
4000 |
4000 |
2200 |
|
System rated pressure(MPa) |
16 |
18 |
22 |
|
Oil tank capacity(L) |
85 |
198 |
180 |
|
Main frame external size(mm) |
1800×620×1300 |
1800×750×1360 |
2180×800×1516 |
|
Pump station external size(mm) |
1400×500×1000 |
1450×790×1100 |
1700×850×1100 |
|
Main frame weight(kg) |
418 |
673 |
1125 |
|
Pump station weight(kg) |
328 |
465 |
750 |
|
Operation desk weight(kg) |
78 |
104 |
55 |
|
Drill rig weight(kg) |
900 |
1260 |
2000 |
Anti-explosion electric motor
|
Model |
ZDY-660 |
ZDY-1200S |
ZDY-2000S |
|
Rated power(Kw) |
15 |
22 |
37 |
|
Rated voltage(V) |
380/660(s) or 660/1140 |
380/660 or 660/1140(s) |
380/660 or 660/1140(s) |
Corollary tools
|
Model |
ZDY-660 |
ZDY-1200S |
ZDY-2000S |
|||
|
Drill diameter(mm) |
Φ42 |
Φ50 |
Φ50 |
Φ63.5 |
Φ63.5 |
Φ73 |
|
Geological drill bit diameter (mm) |
Φ56/Φ65/ Φ75 |
Φ65/Φ75/ Φ90/Φ94 |
Φ65/Φ75/ Φ90/Φ94 |
Φ75/Φ90/ Φ94/Φ108 |
Φ75/Φ90/ Φ94/Φ108 |
Φ90/Φ94/ Φ108/Φ133 |
