KL1.2LM (A) Miner’s Cap Lamp
  • Image 01
  • 1

Application

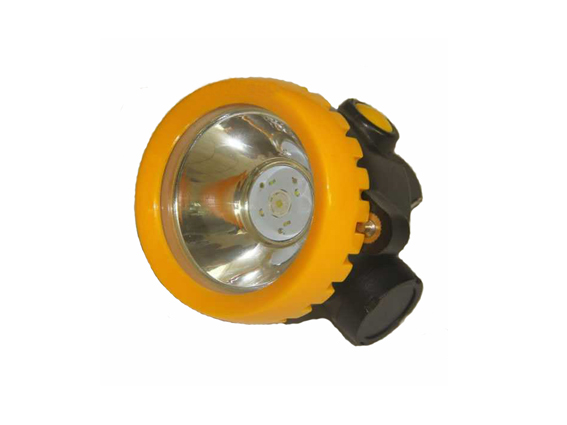

KL1.2LM(A) type miner’s cap lamp ( lamp) is this kind of lamp controlled by single slide machine, made with efficient LED lighting tube, aiding light,Iron phosphate power to the integral type micro mining lamp. This mining lamp gets rid of the burden of traditional heavy battery box and cable,which combines the latest mining lamp and scientific designing. The whole device is as the same weight as the hap mining light, the lightness and the angle can be adjusted accordingly, there is no need to change the way of charging, it can be finished on the traditional charging rack.

KL1.2LM(A) integral type mining lamp can be widely used in the underground environment which is full of explosive gases for lighting , the battery adopts Iron phosphate battery, no memory, no maintain, environment friendly and reliable.



Main technical parameters:

Battery style

Ferric phosphate lithium

Rated capacity

1.2Ah

Rated voltage

3.2V

Lighting time

>11h

LED main light source

Rated working rated current

≤0.1A

Length of life

>30000h

Max luminance

(1m apart from the lamp)

When lighting begins

>1500lx

After lighting for 11h

>600lx

Sub-lighting source rated power

0.4W

Length of life

>2years

Charging voltage

(5-8)V

Charging time

<10h

Explosion protection

Exs 1

Protection grade

IP54

Dimensions of headpiece

Φ71×75mm

Weight

0.18kg
