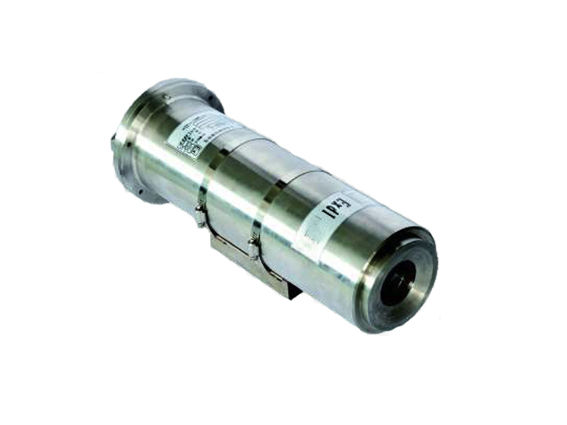

Features

Adopting SONY CCD with high performance, high resolution, clear and delicate image.

Extremely low illumination, supporting automatic switching of ICR infrared filter plate, automatic

function of turning color to black, realizing monitoring day and night.

Technical specification

1.  Rated voltage: AC 127V

2.  Power: ≤30VA

3.  Image quality: when the illumination is less than 10 Lux

        a)  Horizontal definition: 350TVL

        b)  Gray level discrimination: 7

        4.  The camera has two output modes which can’t work simultaneously.

               a)  Video signal output (“OUT” in the video interface board means video signal output.)

                     Video output signal is positive;

                     The nominal value of video output signal is 1.0V (75Ω balanced load)

                     Video output signal：0.7±0.2V

                    Synchronizing signal：0.3±0.1V

             b）Optical signal output

                   Transmission optical cable：single mode, wave length：1310nm

                   Optical transmitting power：0dBm-16dBm

      5.   Dimension：Φ×L﹦152×435mm
