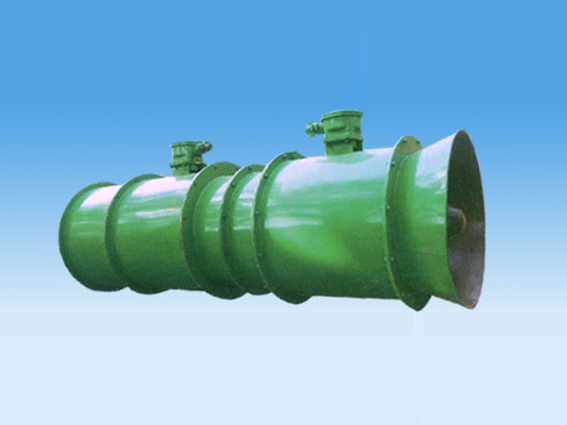

FBD(BSDF)serial of fan has the features of high airflow pressure, big air flow, low noise and long blowing distant which adopts the mine when there is gas,dust or other explosive environment.

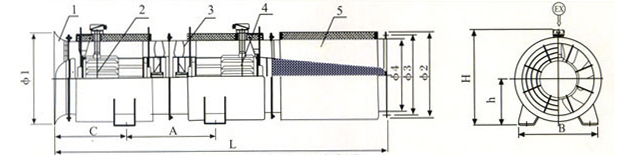

1.FBD (BSDF) Series Contra-rotating Auxiliary Fan Outline Graphs
 Series Contra-rotating Auxiliary Fan-2(1).jpg)
1-collector 2-motor 3-fan 4-motor 5-silencer
2.Performance Parameters and Dimension of FBD (BSDF) Series Contra-rotating Auxiliary Fan
|
Model |
Matched engine model |
Power |
Air quantity |
Air pressure |
L |
Φ1 |
Φ2 |
Φ3 |
Φ4 |
h |
H |
B |
C |
|
4 |
YBF100L-2 |
2.2×2 |
95~160 |
336~1810 |
1620 |
561 |
403 |
465 |
515 |
250 |
750 |
400 |
340 |
|
YBF100L-2 |
4×2 |
135~180 |
396~2360 |
||||||||||
|
5 |
YBF132S-2 |
5.5×2 |
200~280 |
384~2930 |
1850 |
662 |
504 |
566 |
616 |
350 |
870 |
520 |
450 |
|
YBF132S-2 |
7.5×2 |
210~305 |
444~3050 |
||||||||||
|
5.6 |
YBF160M-2 |
11×2 |
240~360 |
552~3500 |
2340 |
742 |
564 |
634 |
690 |
390 |
940 |
640 |
590 |
|
YBF160M-2 |
15×2 |
280~430 |
600~4000 |
||||||||||
|
YBF160L-2 |
18.5×2 |
355~430 |
720~4850 |
||||||||||
|
6.3 |
YBF160L-2 |
18.5×2 |
300~480 |
4300~600 |
2770 |
820 |
632 |
720 |
770 |
430 |
1020 |
700 |
700 |
|
YBF180L-2 |
22×2 |
360~550 |
780~5200 |
||||||||||
|
7.1 |
YBF200L-2 |
30×2 |
380~640 |
912~5700 |
2980 |
870 |
713 |
790 |
860 |
460 |
1060 |
740 |
525 |
|
YBF200L-2 |
37×2 |
400~695 |
1020~6860 |
||||||||||
|
8 |
YBF225M-2 |
45×2 |
440~920 |
1152~6500 |
3450 |
1080 |
803 |
970 |
1020 |
550 |
1290 |
920 |
900 |
|
YBF250M-2 |
55×2 |
450~980 |
1224~7500 |
||||||||||
|
YBF280S-2 |
75×2 |
520~1150 |
1620~8600 |
||||||||||
|
9 |
YBF200L-4 |
30×2 |
510~1200 |
816~3220 |
3650 |
1220 |
905 |
1100 |
1180 |
630 |
1390 |
1100 |
1050 |
|
10 |
YBF225S-4 |
37×2 |
580~1350 |
948~3460 |
4350 |
1450 |
1005 |
1220 |
1400 |
740 |
1500 |
1300 |
1110 |
|
YBF225M-4 |
45×2 |
620~1380 |
1020~3780 |
