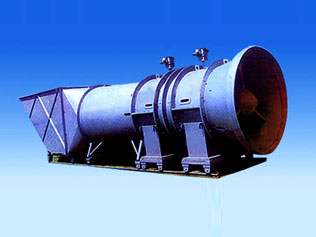

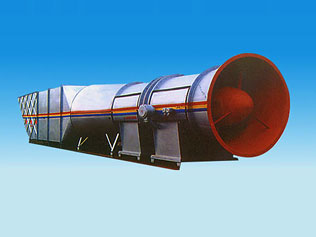

This serial of fans is a counter rotating explosion proof main fan,the first grade and the second grade leaves adopt Three dimensional twisted blades which provide great airflow, high airflow pressure, the amount of the airflow can be adjusted,it’s between 720m3 /min and 48000m3/min,the still pressure is between 400Pa-5950Pa. It can be used in aerating big and middle scale.
This fan adopts four hub ratio they are 40, 54,60and 65,the generator can be chosen from four rolling speed, they are 6grade(980r/min),8grade(740/min),10grade(580/min) and 12grade(490r/min)
Parameters of FBCDZ Series Explosion-proof Main Fan
1. FBCDZ-6-No. n=980 r/min Parameters
|
Series |
No. |
Matched engine type |
Power (Kw) |
Wind range |
Wind pressure range |
Pst-Q curves No. |
|
FBCDZ-6-No. n=980r/min |
12B |
YBFe200L1-6 |
18.5×2 |
12-26 |
400-1500 |
2-1 |
|
13B |
YBFe225M-6 |
30×2 |
15.2-33.7 |
463-1750 |
2-2 |
|
|
14B |
YBFe280S-6 |
45×2 |
18.9-42.1 |
537-1750 |
2-3 |
|
|
15A |
YBFe250M-6 |
37×2 |
16-40 |
98-1746 |
2-4 |
|
|
15B |
YBFe280M-6 |
55×2 |
23.3-51.7 |
617-2340 |
2-5 |
|
|
16A |
YBFe280M-6 |
55×2 |
21-55 |
98-1970 |
2-6 |
|
|
16B |
YBFe315S-6 |
75×2 |
28.3-62.8 |
702-2650 |
2-7 |
|
|
17A |
YBFe315S-6 |
75×2 |
22-75 |
116-2237 |
2-8 |
|
|
17B |
YBFe315L1-6 |
110×2 |
33.9-75.3 |
792-2992 |
2-9 |
|
|
18A |
YBFe315M-6 |
90×2 |
26-86 |
172-2403 |
2-10 |
|
|
18B |
YBFe315L2-6 |
132×2 |
40.2-89.4 |
888-3354 |
2-11 |
|
|
19A |
YBFe315L1-6 |
110×2 |
31-101 |
200-2757 |
2-12 |
|
|
19B |
YBFe315S3-6 |
185×2 |
47.3-105 |
990-3740 |
2-13 |
|
|
20B |
YBFe315M-6 |
220×2 |
55-123 |
1096-4140 |
2-14 |
|
|
22B |
YBFe450M1-6 |
355×2 |
100-170 |
2050-5080 |
2-15 |
2.FBCDZ-8-No.n=740r/min Parameters
|
Series |
No. |
Matched engine type |
Power (Kw) |
Wind range |
Wind pressure range |
Pst-Q curves No. |
|
FBCDZ-8-No. n=740r/min |
18B |
YBFe315M-8 |
75×2 |
30-68 |
506-1913 |
2-16 |
|
18C |
YBFe315L1-8 |
90×2 |
25-55 |
700-2260 |
2-17 |
|
|
19B |
YBFe315L1-8 |
90×2 |
36-79 |
564-2130 |
2-18 |
|
|
20B |
YBFe315L2-8 |
110×2 |
42-93 |
625-2360 |
2-19 |
|
|
20C |
YBFe355S4-8 |
160×2 |
30-75 |
900-3000 |
2-20 |
|
|
21B |
YBFe355S2-8 |
132×2 |
48-107 |
670-2600 |
2-21 |
|
|
22B |
YBFe355S4-8 |
160×2 |
55-123 |
756-2860 |
2-22 |
|
|
22C |
YBFe450S2-8 |
220×2 |
40-100 |
1000-3600 |
2-23 |
|
|
23B |
YBFe450S1-8 |
200×2 |
63-141 |
820-3125 |
2-24 |
|
|
24C |
YBFe450S2-8 |
220×2 |
53-130 |
1200-4300 |
2-26 |
|
|
25B |
YBFe450M2-8 |
315×2 |
80-180 |
980-3690 |
2-27 |
|
|
26B |
YBFe560S2-8 |
355×2 |
90-200 |
1060-3990 |
2-28 |
|
|
26C |
YBFe630S1-8 |
500×2 |
70-170 |
1000-4900 |
2-29 |
|
|
28A |
YBFe560M1-8 |
400×2 |
95-275 |
1720-4200 |
2-30 |
|
|
28B |
YBFe560M2-8 |
450×2 |
95-280 |
1800-5200 |
2-31 |
|
|
30A |
YBFe560M2-8 |
450×2 |
110-360 |
1400-3700 |
2-32 |
|
|
30B |
YBFe630S1-8 |
500×2 |
110-380 |
1700-4400 |
2-33 |
|
|
30C |
YBFe630M1-8 |
630×2 |
105-260 |
1700-6500 |
2-34 |
|
|
32A |
YBFe630M1-8 |
630×2 |
130-420 |
1600-4400 |
2-35 |
|
|
32B |
YBFe630M2-8 |
710×2 |
140-460 |
1950-5400 |
2-36 |
|
|
34A |
YBFe630M2-8 |
710×2 |
160-500 |
1600-4400 |
2-37 |
|
|
34B |
YBFe710S2-8 |
900×2 |
160-550 |
1960-5650 |
2-38 |
3. FBCDX-10-No. n=580 r/min Parameters
|
Series |
No. |
Matched engine type |
Power (Kw) |
Wind range |
Wind pressure range |
Pst-Q curves No. |
|
FBCDZ-10-No. n=580r/min |
22D |
YBFe355S2-8 |
132×2 |
14-73 |
770-2590 |
2-39 |
|
24B |
YBFe400L-10 |
132×2 |
56-125 |
552-2090 |
2-40 |
|
|
24C |
YBFe450S2-10 |
185×2 |
42-100 |
800-2600 |
2-41 |
|
|
24D |
YBFe450S1-10 |
160×2 |
28-95 |
750-2300 |
2-42 |
|
|
25B |
YBFe450S1-10 |
160×2 |
64-142 |
600-2266 |
2-43 |
|
|
26B |
YBFe450S2-10 |
185×2 |
72-160 |
649-2450 |
2-44 |
|
|
26D |
YBFe450M1-10 |
200×2 |
36-120 |
700-2643 |
2-45 |
|
|
27B |
YBFe450M1-10 |
220×2 |
80-179 |
730-2770 |
2-46 |
|
|
28B |
YBFe450L2-10 |
250×2 |
90-200 |
752-2843 |
2-47 |
|
|
28C |
YBFe630S1-10 |
400×2 |
70-160 |
1100-3600 |
2-48 |
|
|
28D |
YBFe560S-10 |
280×2 |
44-150 |
1040-3210 |
2-49 |
|
|
29B |
YBFe560M1-10 |
315×2 |
100-225 |
825-3020 |
2-50 |
|
|
30B |
YBFe450S1-10 |
355×2 |
110-245 |
864-3264 |
2-51 |
|
|
30C |
YBFe710M1-10 |
560×2 |
80-190 |
1600-3200 |
2-52 |
|
|
30D |
YBFe630S1-10 |
400×2 |
54-184 |
1200-3690 |
2-53 |
|
|
32B |
YBFe560M2-10 |
355×2 |
110-370 |
1200-3800 |
2-54 |
|
|
32C |
YBFe710L1-10 |
710×2 |
100-240 |
1500-4500 |
2-55 |
|
|
32D |
YBFe710M1-10 |
560×2 |
65-224 |
1360-4200 |
2-56 |
|
|
34B |
YBFe630M1-10 |
450×2 |
120-420 |
1470-3300 |
2-57 |
|
|
34C |
YBFe800M1-10 |
1000×2 |
120-280 |
2000-5200 |
2-58 |
|
|
34D |
YBFe800S1-10 |
800×2 |
78-268 |
1540-4740 |
2-59 |
|
|
36A |
YBFe710M2-10 |
630×2 |
130-450 |
1270-4900 |
2-60 |
|
|
36B |
YBFe800M2-10 |
710×2 |
135-500 |
1170-5680 |
2-61 |
|
|
36D |
YBFe800M1-10 |
1000×2 |
93-319 |
1730-5310 |
2-62 |
|
|
38A |
YBFe800S1-10 |
800×2 |
140-580 |
1270-4500 |
2-63 |
|
|
38B |
YBFe800S2-10 |
900×2 |
150-600 |
1370-5000 |
2-64 |
|
|
40A |
YBFe800S2-10 |
900×2 |
170-780 |
1350-5650 |
2-65 |
4. FBCDZ-12-No. n=490 r/min Parameters
|
Series |
No. |
Matched engine type |
Power (KW) |
Wind range |
Wind pressure range |
Pst-Q curves No. |
|
FBCDZ-12-No. |
28D |
YBFe500-12 |
220×2 |
36-125 |
710-2270 |
2-67 |
|
30D |
YBFe500-12 |
250×2 |
45-153 |
810-2540 |
2-68 |
|
|
32D |
YBFe500-12 |
355×2 |
54-174 |
920-2890 |
2-69 |
|
|
34D |
YBFe500-12 |
450×2 |
65-229 |
1040-3260 |
2-70 |
|
|
36D |
YBFe630-12 |
560×2 |
65-264 |
1170-3650 |
2-71 |
|
|
38D |
YBFe630-12 |
710×2 |
90-307 |
1300-4070 |
2-72 |
|
|
40 |
YBFe710M1-12 |
630×2 |
100-480 |
1100-3520 |
2-73 |
|
|
40D |
YBFe630-12 |
900×2 |
109-362 |
1440-4510 |
2-74 |
|
|
42 |
YBFe800S1-12 |
900×2 |
110-550 |
1400-4000 |
2-75 |
|
|
42D |
YBFe630-12 |
1200×2 |
122-440 |
1590-4970 |
2-76 |
|
|
44 |
YBFe800M2-12 |
1250×2 |
130-700 |
1500-4300 |
2-77 |
|
|
44D |
YBFe630-12 |
1450×2 |
141-460 |
1750-5460 |
2-78 |
|
|
46 |
YBFe900S1-12 |
1500×2 |
150-800 |
1700-4800 |
2-79 |

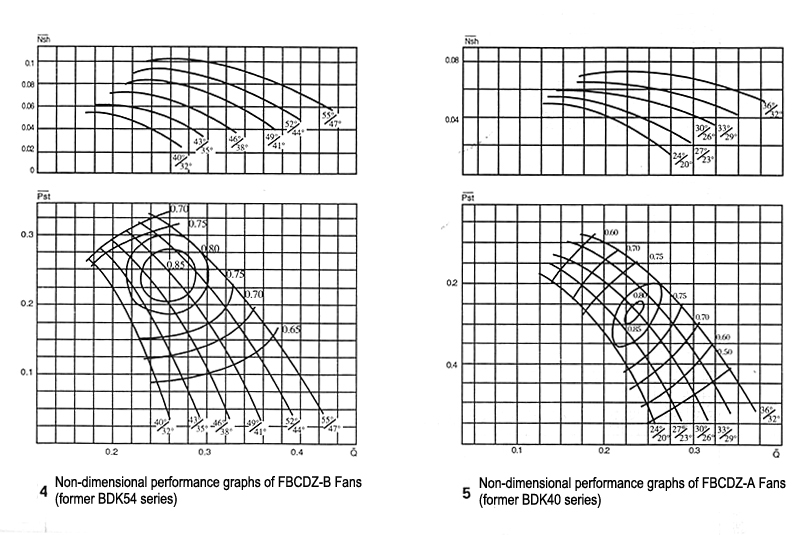

5. Non-dimensional performance graphs of FBCDZ-B、A Series Fans
.jpg)

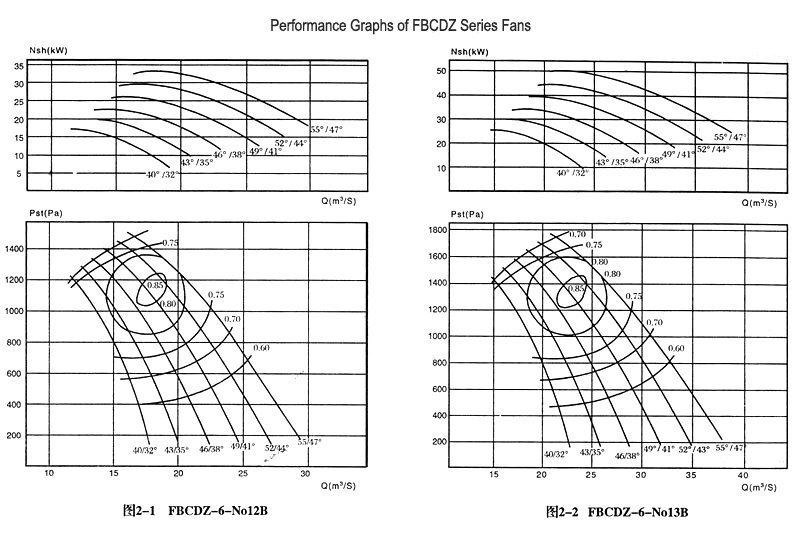

6. Performance Graphs of FBCDZ Series Fans

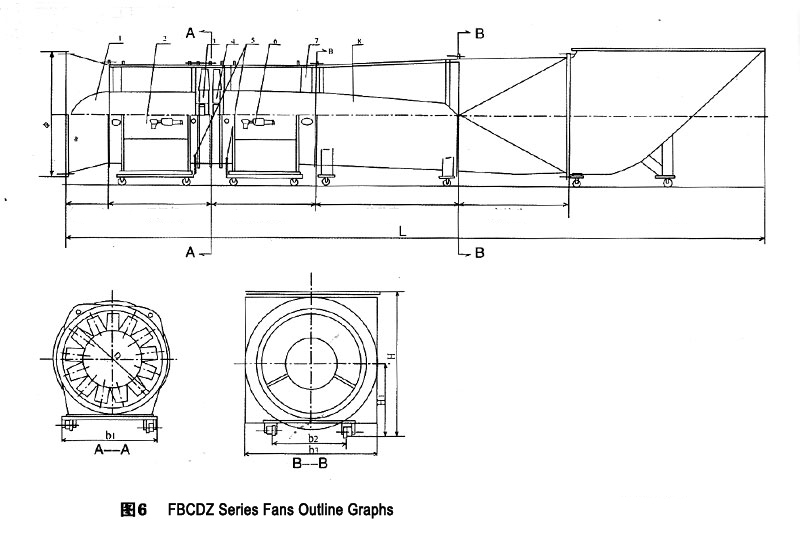

7. FBCDZ Series Fans Outline Graphs
8. FBCDZ Series Fans Dimension
|
No |
Dimension |
|||||||
|
ф |
D |
L |
b1 |
b2 |
b3 |
H |
H 1 |
|
|
12 |
1580 |
1200 |
7535 |
1240 |
1050 |
1580 |
1845 |
1055 |
|
13 |
1700 |
1300 |
8155 |
1340 |
1150 |
1700 |
1965 |
1115 |
|
14 |
1840 |
1400 |
9035 |
1440 |
1250 |
1940 |
2085 |
1185 |
|
15 |
1960 |
1500 |
9705 |
1540 |
1350 |
1960 |
2225 |
1246 |
|
16 |
2100 |
1600 |
10425 |
1640 |
1450 |
2100 |
2365 |
1315 |
|
17 |
2240 |
1700 |
11190 |
1730 |
1540 |
2240 |
2507 |
1385 |
|
18 |
2360 |
1800 |
12400 |
1840 |
1640 |
2360 |
2625 |
1445 |
|
19 |
2480 |
1990 |
12900 |
1940 |
1750 |
2940 |
2753 |
1505 |
|
20 |
2610 |
2000 |
13930 |
2040 |
1750 |
2610 |
2880 |
1575 |
|
21 |
2730 |
2100 |
15240 |
2140 |
1950 |
2730 |
3011 |
7630 |
|
22 |
2890 |
2200 |
15820 |
2240 |
2050 |
2890 |
3160 |
1715 |
|
23 |
3010 |
2300 |
16507 |
2340 |
2150 |
3010 |
3275 |
1770 |
|
24 |
3160 |
2400 |
17430 |
2440 |
2250 |
3160 |
3465 |
1885 |
|
25 |
3280 |
2500 |
17580 |
2540 |
2350 |
3280 |
3545 |
1935 |
|
26 |
3420 |
2600 |
18350 |
2640 |
2450 |
3420 |
3695 |
1985 |
|
27 |
3540 |
2700 |
18920 |
2740 |
2550 |
3540 |
3805 |
2035 |
|
28 |
3680 |
2800 |
19480 |
2840 |
2650 |
3680 |
3945 |
2105 |
|
29 |
3800 |
2900 |
20610 |
2940 |
2750 |
3800 |
4065 |
2165 |
|
30 |
3940 |
3000 |
21130 |
3040 |
2850 |
3900 |
4205 |
2285 |
|
31 |
4090 |
3100 |
23645 |
3140 |
2950 |
4350 |
4575 |
2310 |
|
32 |
4230 |
3200 |
24975 |
3240 |
3050 |
4500 |
4715 |
2380 |
|
33 |
4350 |
3300 |
26340 |
3340 |
3150 |
4627 |
4855 |
4615 |
|
34 |
4470 |
3400 |
27630 |
3440 |
3250 |
4755 |
4990 |
2500 |
|
35 |
4610 |
3500 |
28680 |
3540 |
3350 |
4903 |
5125 |
2570 |
|
36 |
4730 |
3600 |
30260 |
3640 |
3450 |
5032 |
5260 |
2630 |
|
37 |
4850 |
3700 |
31590 |
3740 |
3550 |
5160 |
5405 |
2690 |
|
38 |
4970 |
3800 |
32910 |
3840 |
3650 |
5289 |
5540 |
2750 |
|
39 |
5090 |
3900 |
34230 |
3940 |
3750 |
5417 |
5675 |
2810 |
|
40 |
5235 |
4000 |
36400 |
4040 |
3850 |
5570 |
5825 |
2882 |
|
41 |
5335 |
4100 |
37730 |
4140 |
3950 |
5679 |
5965 |
2932 |
|
42 |
5475 |
4200 |
39040 |
4240 |
4050 |
5827 |
6095 |
3002 |
|
43 |
5615 |
4300 |
40050 |
4340 |
4150 |
5976 |
6230 |
3072 |
|
44 |
5755 |
4400 |
51060 |
4440 |
4250 |
6125 |
6375 |
3130 |
|
45 |
5886 |
4500 |
52220 |
4540 |
4350 |
6270 |
6510 |
3200 |
|
46 |
6017 |
4600 |
53380 |
4640 |
4450 |
6410 |
6650 |
3270 |
