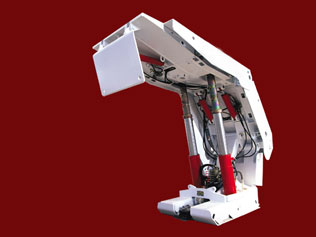

The feature of the Shield Hydraulic Support: compact in structure, easy in operating, often used when the top plate is relatively broken, mining as crushing, the old top plate periodic pressure unclear.
Technical parameters
|
Type |
Work Resistance (kN) |
Iinitial Supporting Force (kN) |
Height (mm) |
Center Distance (mm) |
Supporting Strength (MPa) |
|
ZY2200/14/32 |
2200 |
1979 |
1400-3200 |
1500 |
0.38-0.42 |
|
ZY2400/12/26 |
2400 |
2182 |
1200-2600 |
1500 |
0.42-0.45 |
|
ZY2400/09/18 |
2400 |
2182 |
900-1800 |
1500 |
0.42-0.45 |
|
ZY2800/09/20 |
2800 |
2182 |
900-2000 |
1500 |
0.45-0.48 |
|
ZY2800/14/32 |
2800 |
2182 |
1400-3200 |
1500 |
0.46-0.50 |
|
ZY3000/14/22 |
3000 |
2617 |
1400-2200 |
1500 |
0.50-0.54 |
|
ZY3200/11/26 |
3200 |
2617 |
1100-2600 |
1500 |
0.50-0.55 |
|
ZY3600/09/19 |
3600 |
3092 |
900-1900 |
1500 |
0.57-0.77 |
|
ZY3600/11/28 |
3600 |
3092 |
1100-2800 |
1500 |
0.52-0.58 |
|
ZY3600/14.5/31 |
3600 |
3092 |
1450-3100 |
1500 |
0.55-0.60 |
|
ZY3800/15/35 |
3800 |
3092 |
1500-3500 |
1500 |
0.56-0.60 |
|
ZY4000/10/22 |
4000 |
3092 |
1000-2200 |
1500 |
0.58-0.62 |
|
ZY4000/15/32 |
4000 |
3092 |
1500-3200 |
1500 |
0.60-0.65 |
|
ZY4000/16/35 |
4000 |
3092 |
1600-3500 |
1500 |
0.60-0.65 |
|
ZY4600/09/18 |
4600 |
3879 |
900-1800 |
1500 |
0.65-0.72 |
|
ZY5000/12/26 |
5000 |
3879 |
1200-2600 |
1500 |
0.70-0.78 |
|
ZY5200/14/35 |
5200 |
3879 |
1400-3500 |
1500 |
0.72-0.80 |
|
ZY5500/24/52 |
5500 |
3878 |
2400-5200 |
1500 |
0.82-0.97 |
|
ZY6000/15/35 |
6000 |
5067 |
1500-3500 |
1500 |
0.78-0.85 |
|
ZY6000/20/35 |
6000 |
5067 |
2000-3500 |
1500 |
0.93-0.97 |
|
ZY6400/10.5/21 |
6400 |
5067 |
1050-2100 |
1500 |
0.80-0.86 |
|
ZY6400/18/38 |
6400 |
5067 |
1800-3800 |
1500 |
0.80-0.86 |
|
ZY6800/17/35 |
6800 |
5067 |
1700-3500 |
1500 |
0.85-0.92 |
|
ZY6800/22/45 |
6800 |
5064 |
2200-4500 |
1500 |
0.92-1.00 |
|
ZY7600/23/48 |
7600 |
6412 |
2300-4800 |
1750 |
0.90-0.95 |
|
ZY8500/21/45D |
8500 |
6412 |
2100-4500 |
1750 |
0.98-1.05 |
|
ZY8640/25.5/55D |
8640 |
6412 |
2550-5500 |
1750 |
1.05-1.10 |
|
ZY9000/15/30 |
9000 |
7145 |
1500-3000 |
1750 |
1.06-1.12 |
|
ZY9000/24/50D |
9000 |
7145 |
2400-5000 |
1750 |
1.10-1.18 |
|
ZY12000/28/62 |
12000 |
7916 |
2800-3200 |
1750 |
1.15-1.19 |
|
ZY10000/28/63D |
10000 |
7916 |
2800-6300 |
1750 |
1.15-1.23 |
|
ZY12600/30/65D |
12600 |
10019 |
3000-6500 |
1750 |
1.20-1.26 |
|
ZY15000/32/68D |
15000 |
12370 |
3200-6800 |
2000 |
1.30-1.35 |
|
ZY17000/33/75 |
17000 |
12370 |
3300-7500 |
2050 |
1.38-1.41 |
