Application

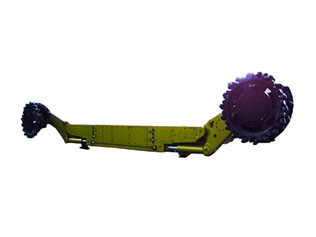

MG170/410-WD series coal shearer is available for the medium thick seam or top grade ordinary mining face, Cutting height range from 1.3~3.19m.
Performance and characteristic
Can be used in mining the coal seam of 1.3-3.19m
The speed regulator is located on board,walks on trail.
Working condition is checked and monitored and related parameter is displayed in Chinese.
Equipped with full protection and memory function.
Loaded leaser keyboard and wireless remote operation are available.
The engine of the cutting part is installed with speed killer,which ensures the security.
All parts of the machine are connected by hydraulic bolt and T bolt.
The design of narrow body enables it to be combined with SGZ630/220,SGZ730/320 and SGZ764/400 conveyor.

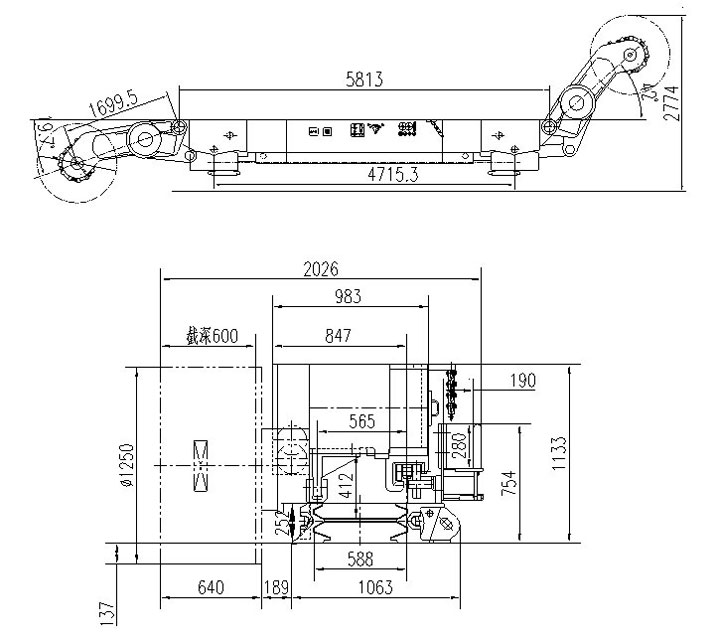

Parameter
|
Model |
MG170/410-WD (Basic) MG150/375-W (Basic) |
MG170/410-WD (long rocker) MG150/375-W (long rocker) |
|
Cutting height range (m) |
1.3~2.76(Ø1.25 roller) |
1.6~3.19(Ø1.6 roller) |
|
Cutting depth(m) |
0.6; 0.8 |
|
|
Adapt dip angle (°) |
0～15,0～35 |
|
|
Roll drum diameter (m) |
Ø1.25; Ø1.4; Ø1.6 |
|
|
Roll drum speed (r/min) |
46; 52 |
|
|
Length of rocker(mm) |
1699.5(Basic) |
1975( long rocker ) |
|
Rocker arm swinging centre distance( mm) |
5813(410-WD) 5269(375-W) |
|
|
Traction force (kN) |
408(410-WD) 350(375-W) |
|
|
Roll drum speed (m/min) |
0~7(410-WD) 0~6(375-W) |
|
|
Traction mode |
AC variable frequency traction (410-WD) hydraulic without chain(375-W) |
|
|
Machine height (mm) |
1133 |
|
|
Minimum dinting capacity( mm) |
137(Ø1.25 roller) ; 212(Ø1.4 roller) ; 312(Ø1.6 roller) |
149(Ø1.4 roller) ; 249(Ø1.6 roller) ; 249(Ø1.6 roller) |
|
Dust suppression mode |
Inside and outside spraying |
|
|
Installed power( KW) |
2×170+2×30+11(410-WD) 2×150+75(375-W) |
|
|
Voltage (V) |
1140 |
|
|
Designed product capacity (t/h) |
600 |
|
|
Max. non-detachable component size (mm) |
2455×940×700(410-WD) 2285×960×700(375-W) |
|
|
Max. non-detachable component weight (kg) |
4731(410-WD) 4480(375-W) |
|
|
Weight (t) |
25(410-WD) 22(375-W) |
|
|
Corollary conveyer |
SGZ630/220; SGZ730/320; SGZ764/400 |
|
