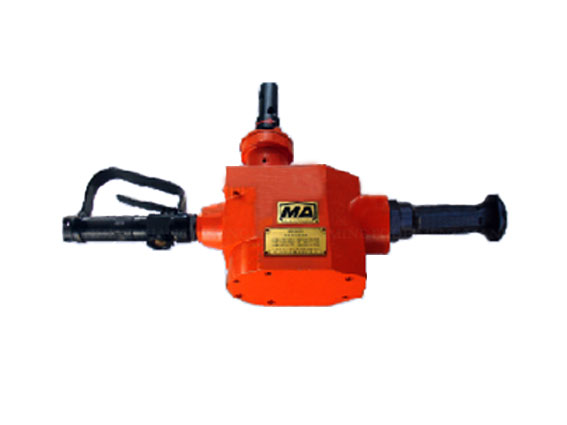

Product introduction
This drilling machine is suitable of detection and releasing work of coal mining; it can also be used in side bolting or anchor bolting, mixing and assembling.
The latest installing mode, comfortable handing structure, easy to operate.
Providing the best function of the hand-held device, the 2.5kw working rate output, which is 60% higher than the mode of the market.
Safe arm of the force which can easily overcome the counter torque when stuck, so it can be peacefully used.
Brand new noise-reducing structure, which enables the operator working in a safe and comfortable environment.
Special material and manufacturing process are adopted to ensure the device can be rightly used longer than 6 months.
Performance and Parameters
|
Performance |
Parameters |
ZQSJ-62/2.5S |
|
Applicable air pressure(MPa) |
0.4-0.63 |
|
|
Rated air pressure(MPa) |
0.5 |
|
|
Flushing water pressure(MPa) |
0.6-1.2 |
|
|
Rated torque(N.m) |
65 |
|
|
Rated rotate speed(r/min) |
350 |
|
|
Rated output power(kW) |
2.5 |
|
|
Stall torque(N.m) |
110 |
|
|
loading air Consumption(m3/min) |
≤4.0 |
|
|
Idle rotate speed(r/min) |
900-1300 |
|
|
Noise(dB(A)) |
≤95 |
|
|
Weight(kg) |
15 |
|
Corollary tools |
Shank size(mm) |
13×13 (square） |
18×18 （square） |
24×24 （square） |
|
High-efficiency spiral drill rod diameter(mm) |
Φ42 |
Φ69 |
Φ76 |
|
|
High-efficiency drill bit diameter(mm) |
Φ44 |
Φ76 |
Φ82 |
