Product introduction

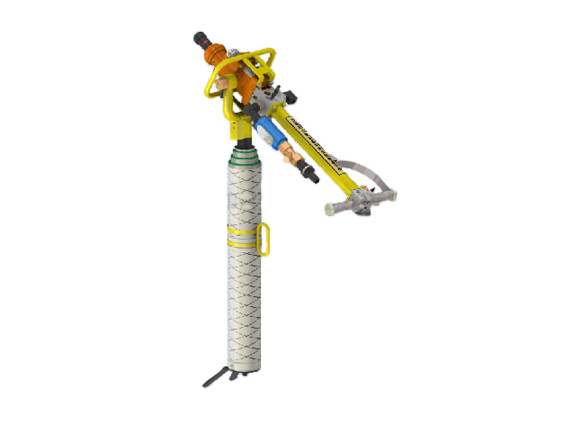

The MQTB-70/1.7 Leg Type to Help the Anchor Rod Drilling Machine can be used in drilling in the mining tunnel of half coal whose hardness is under 60MPa and it is a combination of drilling stirring and installing.It is high-rolling-speed, large-torque, easy-operating and convenient-fixing. Its weight is partly laid on the leg, so that the working strength is greatly deduced, it can be used to replace coal drill.
Performance and Parameters
|
Performance |
Parameters |
MQTB-70/1.7 |
||
|
Applicable air pressure(MPa) |
0.4-0.63 |
|||
|
Rated air pressure(MPa) |
0.5 |
|||
|
Flushing water pressure(MPa) |
0.6-1.2 |
|||
|
Rated torque(N.m) |
70 |
|||
|
Rated rotate speed( (r/min) |
240 |
|||
|
Idle propelling speed(mm/s) |
500 |
|||
|
Rated output power(kW) |
1.7 |
|||
|
Idle rotate speed(r/min) |
780 |
|||
|
Starting torque(N.m) |
100 |
|||
|
Stall torque(N.m) |
110 |
|||
|
Max. loading torque(N.m) |
95 |
|||
|
Max. height(mm) |
3055 |
|||
|
Min. height(mm) |
1255 |
|||
|
Leg type |
Ⅰ |
Ⅱ |
Ⅲ |
|
|
Leg propulsion(Kn) |
2.6 |
3.7 |
5.0 |
|
|
Air consumption(m3/min) |
≤2.5 |
|||
|
Noise(dB(A)) |
≤90 |
|||
|
Weight(kg) |
35 |
|||
|
Chuck size(mm) |
B19(S),B22(O) |
|||
|
Corollary tools |
Specification of drill bit(mm) |
Φ27、Φ28、Φ30、Φ32、Φ38、Φ42、Φ44 |
||
|
Hexagonal（mm） |
B19、B22 |
|||
