Application

It can be used in the coal mine,underground tunnel,working face,chamber,transformer substation,pump station, underground parking lot as a fixed lighting equipment.

It can be used in the environment which contents methane,dust and other explosive gases as a fixed lighting equipment.

Features

Adopting the latest lighting tech.---- electrode less lamp,which is featured with no filament,electrode less etc.

Reflecting mirror that is designed by advanced optics technology, realizes bi-directional luminous efficiency, uniform illumination and long irradiating distance, especially suitable for using in coal mine roadway, when the lamp is suspended 3m from the ground, the light distribution distance reaches 30m.

The shell is made of aluminum alloy by means of die-casting forming, and the surface is treated with high-temperature static powder coating,with high strength and anti-corrosion.

Equipped with heat-resistant and impact-resistant toughened glass that is able to withstand high impact.

Adopting three-chamber independent structure design of light source chamber, power supply chamber and connection chamber,which reduces heat conduction to controller, guaranteeing long-term normal working product.

All fasteners are made of stainless steel of 304# that offers excellent anti-corrosive property.

Wide voltage input, constant luminous output, adapt to voltage fluctuation from 90 to 150V without changing luminance.

The instantaneous starting,no flashing. The driving power adopts dust-proof, wet-proof, anti-corrosion design,which is stable and reliable.

Effective and promising, the average duration of the light is able to reach over 80000 hours.

Excellent filter circuit, the lowest EMI and EMC interference, which reduce power consuming effectively.

Many kinds of installation modes for selection , to satisfy installation in different occasion.

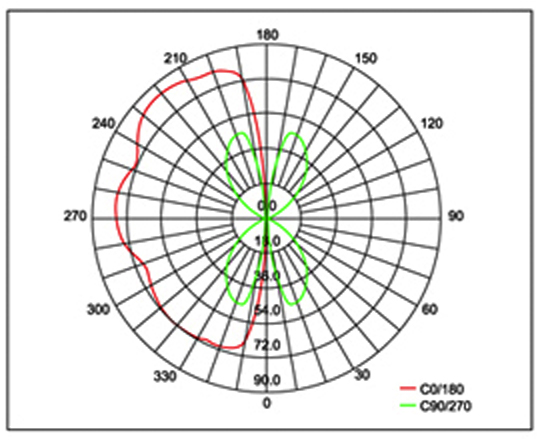

Light distribution curve

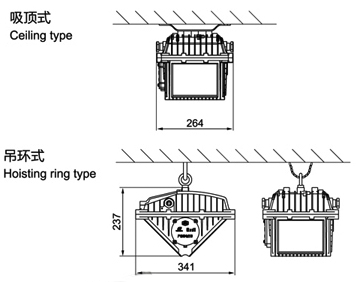

Installation mode

Main technical parameters
