Application

It can be used in the in the underground environment which contents explosive gases and outdoor working, the key parts monitoring, the lighting of the the working place and the devices.

Features

Adopting high strength gas lamp as the lighting recourse,which enjoys a long duration.

The shell is made of aluminum alloy by means of die-casting forming, and the surface is treated with high-temperature static power coating,with high strength and anticorrosion.

It enjoys heat-resistant and impact-resistant 7J toughened glass that is able to withstand high energy impact.

Adopting two-chamber independent structure design of light source chamber and connection chamber, which reduces heat conduction to light source, guaranteeing long-term normal working of light source.

All tighten units are made of stainless steel of 304# that has excellent anti-corrosive property.

Reasonable light distribution is equipped with elaborately wrought pure-aluminum reflector, with high reflection efficiency.

Excellent structure design and the latest surface treatment technology enable the lamp to be waterproof and dust-proof,and to be able to work reliably in various severe environments.

Light weight,small volume,simple and convenient installation, a variety of mounting modes.

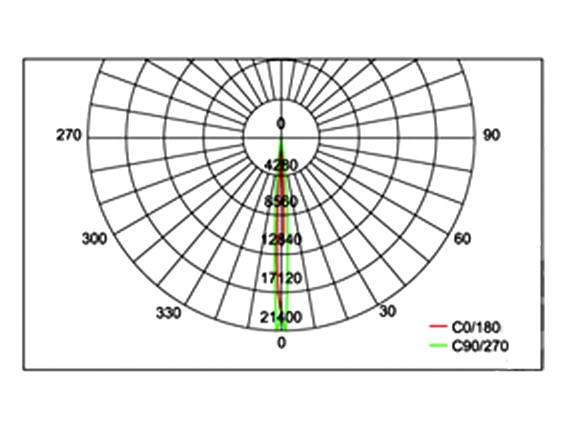

Light distribution curve

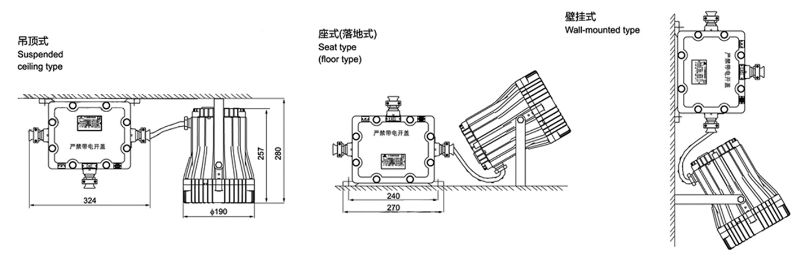

Installation mode

Main technical parameters
