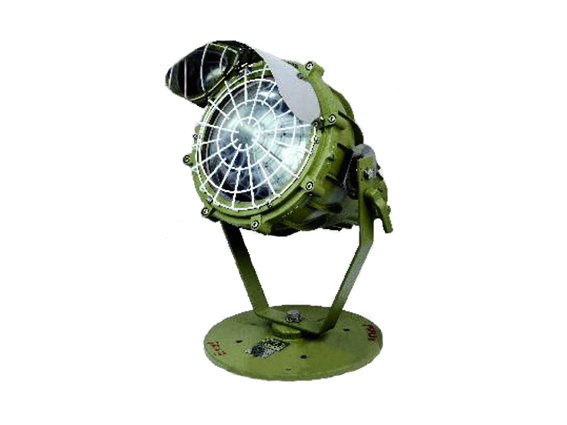

DGS175/127B(C) Mining Explosion Proof Project lamp (metal lamp)
  • Image 01
  • 1

Application

It can be used in the environment which contents methane, dust and other explosive gases.

It can be used in the underground parking lot, center transformer substation, pump station and main tunnel as the lighting device.



Features

Use metal halide lamp of high brightness as light source.

Enclosure is die-casting formed of aluminum alloy with high voltage electrostatic powder coated surface, high strength, corrosion protection.

Internal reflector is carefully designed, dual parabola structure, fine concentration light property.

Adjusting mechanism is equipped with base plate, the spot light is able to locate after rotation horizontally from any angle with elevation angle range from +90° to -40°.



Main technical parameters

Type

Rated power

(W)

Luminous flux (Lm)

Weight

(kg)

Cable O.D.

Lamp average service

life(h)

Outline dimension

W×D×H(mm)

DGS175/127B(C)

175

14000

22

10-14

10000

560×455×352
