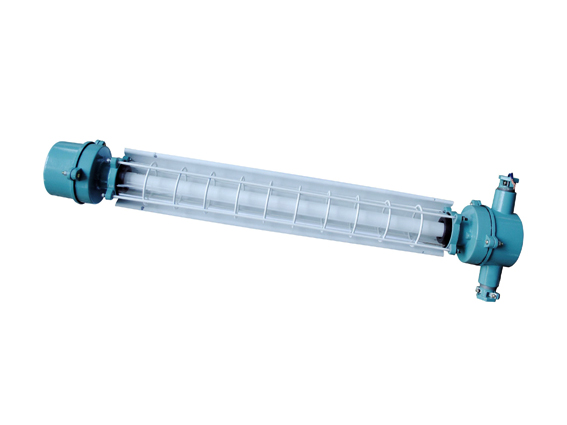

Application
This serial of light can be used in the environment which contents of methane, dust and other explosive environment as a lighting device, when the fluorescent lamp is used in places around parking lots, center substation,pump room and major line way under coal mine, these places should be kept with circulation of fresh air.
Features
High brightness easy installation, fast to change the lamp,safe and reliable etc.
Main technical parameters
Type spec. |
Rated voltage (V) |
Rated power (W) |
Luminous flux (lm) |
Entrance cable O.D. (Φ,mm) |
Outline dimension W×H(mm) |
DGS20/127Y-1 |
127 |
20 |
500 |
9-14 |
210×740 |
DGS20/127Y-2 |
127 |
40 |
1000 |
420×740 |
