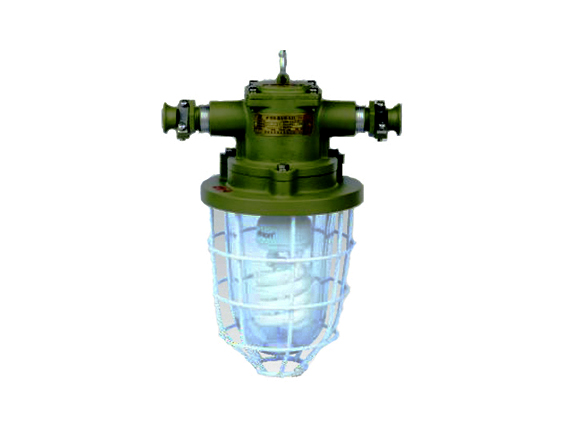

CDGS□/127Y Mining Flame-proof Filament Light(power saving filament light)
  • Image 01
  • 1

Application

It can be used in the environment which is full of methane, dust and other explosive gases as a lighting device.

It can be used in the underground parking lot, center substation, pump room and main tunnel as the lighting device.

Features

Enclosure is die-casting formed of aluminum alloy with high strength.

Surface is high voltage electrostatic power coated corrosion resistance.

The protective glass shield is made of toughened glass, impact resistance, and high strength.

The protective shield is covered with wire guard.

Free of strobflash or noise, strong adaptability to low quality power grid, convenient for operation.

Gentle light cover, fine color rendering, unique shape, high luminous efficiency, and good energy saving effect.

Main technical parameters



Type

Rated power

(W)

Luminous flux

(lm)

Weight

(kg)

Cable O.D

Lamp average service life

(h)

Outline dimension

Width×Depth×Height (mm)

CDGS13/127Y

13

800

2.0



10-14

5000

216×153×263

CDGS18/127Y

18

1140

2.5

5000

216×153×285

CDGS24/127Y

24

1470

2.5

5000

216×153×285
