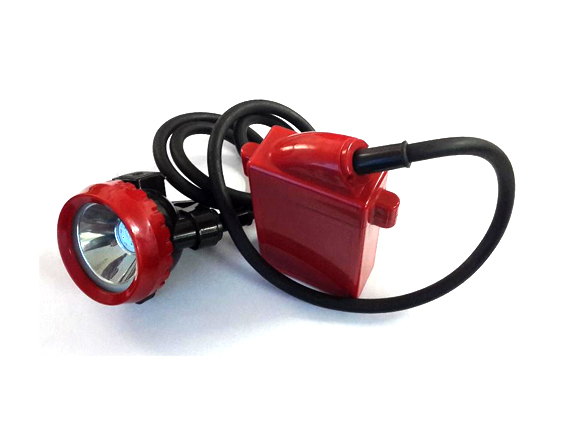

CKL4LM(A) Miner’s Lamp(Lithium Iron Phosphate batteries, LED Illuminant)
  • Image 01
  • 1

Application

It can be used as the portable lighting device under normal mining well, it can also be used as a portable lighting device in other environment

Features

Portable and durable: small in volume, light in weight, the first lighting time is able to 20 hours or more, the cost of maintain is low.

The light is stable: the main light adopts constant current boost to provide power, which protect the duration of the main light as well as the stability of light.

One main and seven auxiliary light, the lightness is able to reach 130LX.

Fast charging,safe and reliable: adopting high high integration degree charger to control the current, using the PWM pulse width modulation,which is with big flow and no heating, 6-8 hours are enough to finish the charging.

Very long duration: adopting lithium iron phosphate battery, which is long in duration, safe, can be over charged, it will not expose in the dangerous environment, it is able to endure heat,it adopts a light which is able to continue to work for 50 thousand hours.

Easy to operate: the mining light adopts 360 degree turning, reliable in operating and long duration.

Auto recover in short circuit: this product is equipped short circuit self recover function, when the battery is short circuit, there is no need to put it back to recover the power producing.

Main technical parameters



Number

Parameters

Unit

Value

Outline dimension

Width×Depth×Height( mm)

1

Rated capacity

AV

4.0

90×42.6×112

2

Nominal voltage

V

3.2

3

Lighting time

h

≥20

4

LED lamp LED

Current of main lamp

A

≤0.2

5

Current of secondary lamp

A

0.10

6

Average service life

h

≥50000

7

Max .Luminous intensity (1 m distance)

Lighting begins

Lx

≥2000

8

Lighting for 20h

Lx

≥1500
