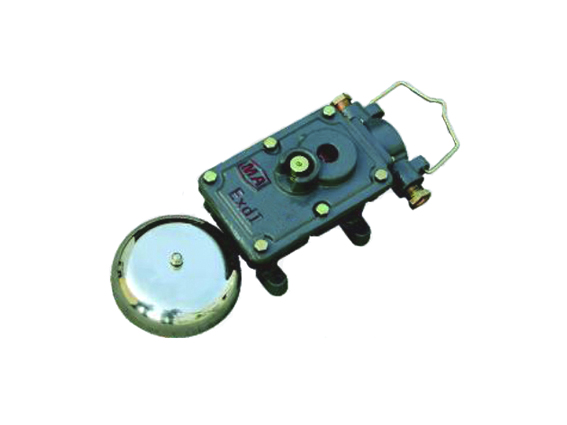

CBAL-36(127) Mining Explosion Proof Acousto-optic Combination Electrical Bell
  • Image 01
  • 1

Application

This serial of electrical bell is adopted to the underground environment which contents of methane,dust and other explosive gas, in the power supply line of 50Hz and 127V, it can be used in partly display or long-distance transport signal or lighting alarm.

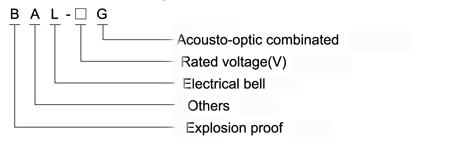

Model implication



Main technical parameters



Type

Rated voltage

Rated current

Acoustics radius(m)

Visual distance(m)

Cable O.D.

(Φmm)

Outline dimension

L×W×H(mm)

Weight (kg)

CBAL-36G

36

0.9

150

150



8~13



490×150×130



9

CBAL-127G

127

0.35

150

150
