Application

This device can be used in the big device which is used in the environment that is full of methane,dust and other explosive gas. In the power supply of 50Hz, voltage 1140V, 660V or 380V, it can be used as soft start, current limiting start, full-voltage start, natural stop and soft stop to three-phases squirrel-cage asynchronous motor with current equal of less than 400A, and has various protection functions like phase protection, under-current and over-current protection, imbalance current protection and so on.

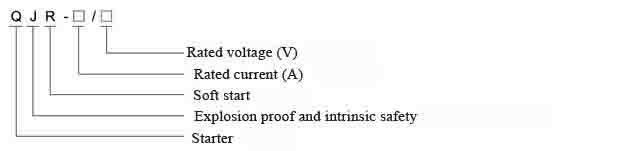

Model implication

Features

Adopts advanced microprocessor, inspection module, protection module and control module. The product has features of advanced technologies, complete function, stable performance, strong anti-interference capability and reliable operation and so on.

Use advanced power electronic components to achieve double closed loops control of current and speed, with functions of soft start, soft-stopping, start of kick circuit, start detecting, RS232 communication and so on, the product can meet control requirements of different load objects like fan motor, water pump, rubber belt conveyor and scraper conveyor, etc.

The product displays voltage, current data of motor.

The soft starter has complete self-diagnosis function and protection function, with protection of temperature, under-voltage, over-voltage, under-current, default phase, line fault, stall, leakage, thyristor fault, etc. In course of start and stop. Therefore, protection functions above make operating of soft starter become more reliable whatever various interferences and malfunction signals come from inside or outside.

Alarm instruction functions correspond with malfunction type, which greatly reduced maintenance and repair workload.

Simple structure, easy to install and operate. It can be local controlled, as well as remote controlled by programmable logic controller (PLC) or other equipments.

It has the communication port of RS-485 or CAN BUS.

Main technical parameters
