KBXC-5/127-1 Travel Switch

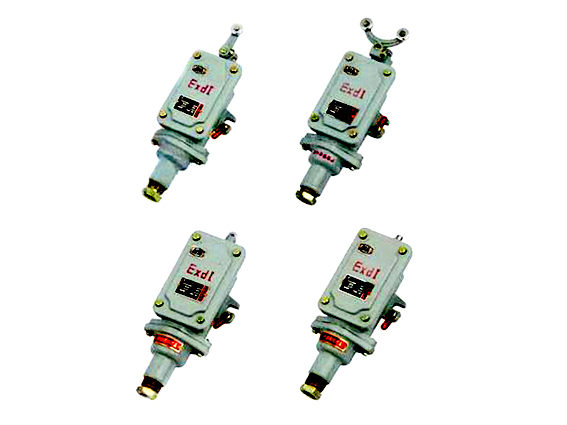

KBXC-5/127-1 Mining Explosion Proof Travel Switch
  • Image 01
  • 1

Application

This serial of product can be used to control the units in the underground environment which content methane, dust and other explosive gas.

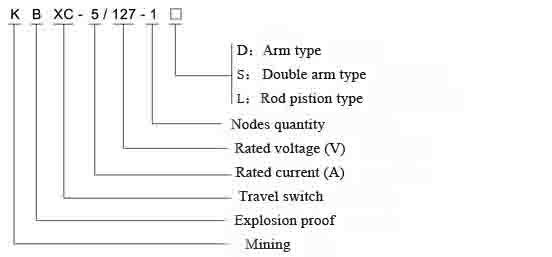

Model implication



Features

Adopts cast steel sprayed with plastic.

Built-in imported travel switch.



Main technical parameters

Rated voltage

(V)

Rated current

(A)

Contact quantity

Available cable O.D.

(Φ,mm)

Outline dimension

L×W×H(mm)

Weight

(kg)

127

5

1NO+1NC

8~13

265×90×78

8.5
