Application

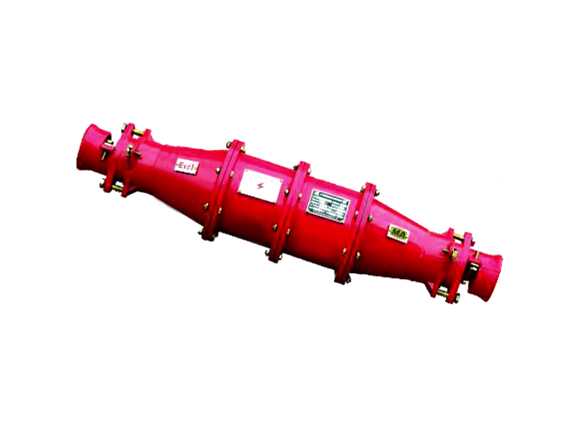

This series of connector can be used in connecting cable of 6KV, which is able to be used to connect the UGPS monitoring scream with the movable substation, it can be used in the connection of the two sides of the cable to ease the interconnection, it can also be used in connecting itself to the movable substation.
It is made up with the high-quality seamless steel pipe, it is compact in structure and strong in interchange ability.
Strong overloading ability and good thermal and stability.
Features
The product is made of high quality seamless steel pipe with compact structure and strong interchange ability.
With strong overload ability and good thermal stability and dynamic stability.
Main technical parameters
|
Type spec. |
LBG1-200/6(A) |
LBG1-400/6(A) |
LBG1-200/10(A) |
|
|
Rated voltage(KV) |
6 |
6 |
10 |
|
|
Rated current |
200 |
400 |
200 |
|
|
Limit passing current |
Virtual value |
9 |
9 |
12 |
|
Peak value |
15 |
15 |
20 |
|
|
Dynamic-thermal stability current |
Thermal Stability2S |
3.15 |
6.3 |
3.15 |
|
Dynamic stability2S |
7.87 |
14 |
7.87 |
|
|
Matched cable’s max.O.D.( mm) |
78 |
78 |
78 |
|
|
Outline dimension L ×W×H(mm) |
215×1200 |
215×1200 |
280×1200 |
|
|
Weight(kg) |
67 |
68 |
110 |
|
