Application

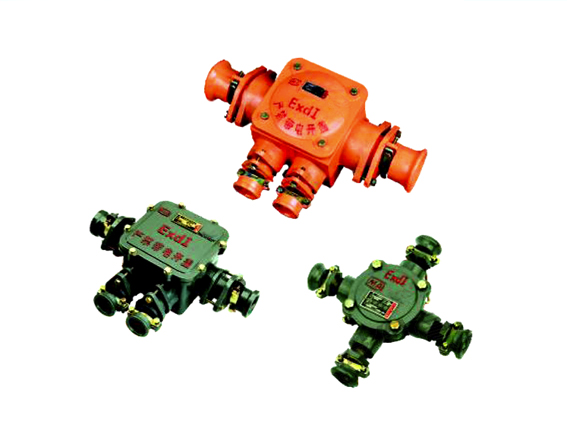

This series of explosion proof low-voltage mining junction cable box can be used in underground environment like explosive gas such as methane, coal dust and etc. It can be used in the supply system of AC 50Hz, voltage 1140V, current flow over 400A to provide the signal, enlightenment, driving and other function of illumination.
Features
The product has features of safety, reliability, small size, light weight, convenience, high strength, good insulation performance.
Main technical parameters
|
Type &Specification |
Rated current(A) |
Rated voltage(V) |
Cable entry quantity |
Max. cable O.D(mm) |
Outline dimension L×W×H(mm) |
Weight (kg) |
|
|
Main |
Branch |
||||||
|
BHD2-25/380-2T |
25 |
380 |
2 |
0 |
9-15 |
260×125×75 |
3.3 |
|
BHD2-25/380-3T |
3 |
0 |
260×195×75 |
3.8 |
|||
|
BHD2-25/380-4T |
4 |
0 |
260×260×75 |
4.3 |
|||
|
BHD2-40/660-2T |
40 |
660 |
2 |
0 |
8-20 |
300×130×112 |
5 |
|
BHD2-40/660-3T |
3 |
0 |
300×215×112 |
6 |
|||
|
BHD2-40/660-4T |
4 |
0 |
300×300×112 |
6.2 |
|||
|
BHD2-100/660-2T |
100 |
660 |
2 |
0 |
19-36 |
400×240×155 |
12 |
|
BHD2-100/660-3T |
3 |
0 |
13.5 |
||||
|
BHD2-100/660-4T |
4 |
0 |
14.5 |
||||
|
BHD2-200/660-2T |
200 |
660 |
2 |
0 |
22-49 |
440×240×180 |
20 |
|
BHD2-200/660-3T |
3 |
0 |
22-49 |
440×330×180 |
22 |
||
|
BHD2-200/660-4T |
2 |
2 |
22-49/19-36 |
440×330×180 |
23 |
||
|
BHD2-200/1140-2T |
200 |
1140 |
2 |
0 |
22-49 |
500×250×180 |
29 |
|
BHD2-200/1140-3T |
3 |
0 |
22-49 |
500×380×180 |
30 |
||
|
BHD2-200/1140-4T |
2 |
2 |
22-49/19-36 |
500×380×180 |
31 |
||
|
BHD2-400/1140-2T |
400 |
140 |
2 |
0 |
42-78 |
670×250×230 |
45 |
|
BHD2-400/1140-3T |
3 |
0 |
42-78 |
670×460×230 |
50 |
||
|
BHD2-400/1140-4T |
2 |
2 |
42-78/22-49 |
670×460×230 |
50 |
||
