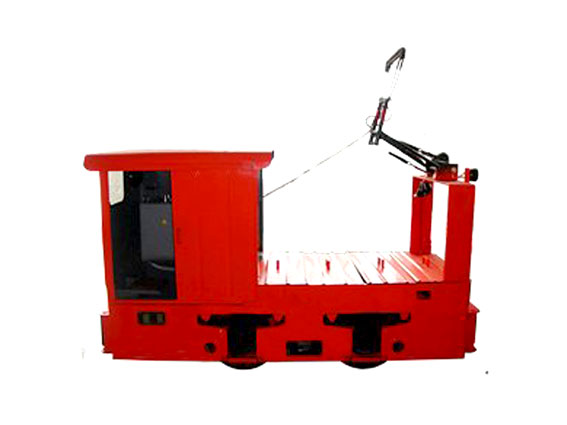

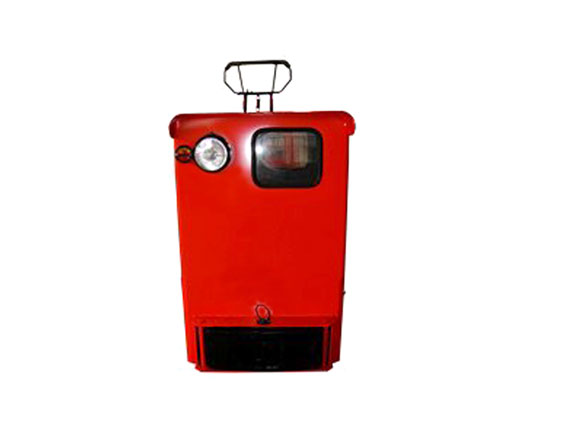

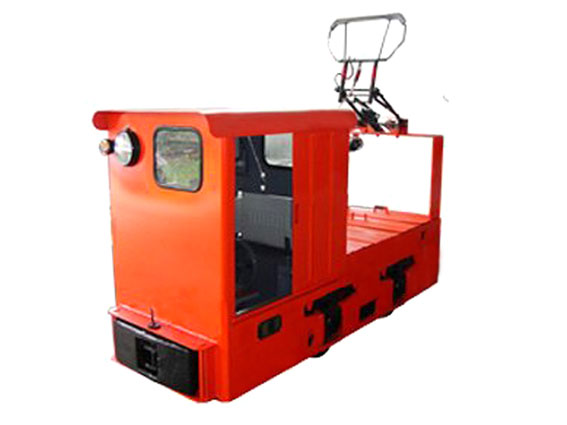

3 ton frame locomotive has step and stepless two types of speed regulation. It adopts mechanical braking. The voltage is 250V. Main characteristics: big driving force, high speed , stable and flexible,.the walking structure adopts cone and positive turning, long duration and efficient.
|
Model |
CJY3/6, 7, 9G(B) |
||
|
Total weight(t) |
3 |
||
|
Trail distance(mm) |
600, 762 or 900 |
||
|
Traction force(kn) |
6.1 |
5.74 |
|
|
Max. traction force(kn) |
7.36 |
||
|
Speed (km/h) |
10.6 |
7.2 |
|
|
Direct voltage |
550 |
250 |
|
|
Power(kw)×number |
12kW×1 |
6.5kW×2 |
|
|
Dimension |
Length (with roof)(mm) |
2700 |
2750 |
|
Width (mm) |
940, 1082 or 1220 |
||
|
Height(from level to platfond)(mm) |
1550 |
||
|
Wheel distance(mm) |
816 |
850 |
|
|
Wheel diameter(mm) |
Φ650 |
Φ520 |
|
|
Pantograph operational height |
1800~2000 |
||
|
Min. turning radius(m) |
5.7 |
||
|
Speed adjustment mode |
Resistance or chopper speed control |
||
|
Brake mode |
Mechanical or hydraulic braking |
||
