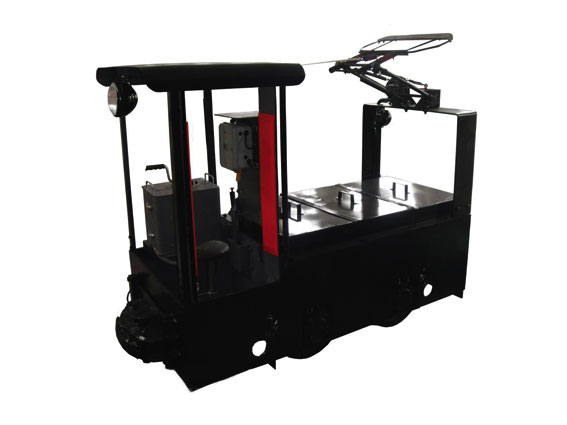

The 1.5 ton battery locomotive has two driving voltage: 110V and 250V. Its structure can be divided into inner frame and outer frame, which are all step-speed changing. Main characteristics: Stable and fixable, easy to operate and repair. The speed killing system works very well.
Performance and Parameters
|
Model |
CJY1.5/6, 7 9G(B) |
||
|
Total weight(t) |
1.5 |
||
|
Trail distance(mm) |
600, 762, 900 |
||
|
Traction force(kn) |
2.55 |
3.24 |
|
|
Max. traction force(kn) |
3.68 |
||
|
Speed (km/h) |
4.54 |
6.6 |
|
|
Direct voltage(v) |
100 |
250 |
|
|
Motor power(kw) × number |
3.5×1 |
6.5×1 |
|
|
Dimension |
Length (with roof)(mm) |
2340 |
2370 |
|
Width (mm) |
950, 950, 1100 |
||
|
Height (from level to platfond)(mm) |
1550 |
||
|
Wheelbase (mm) |
650 |
||
|
Wheel diameter(mm) |
Φ460mm |
||
|
Pantograph operational height(mm) |
1600~2000 |
1800~2000 |
|
|
Min. turning radius(m) |
5 |
||
|
Speed adjustment mode |
Resistance or chopper speed control |
||
|
Brake mode |
Mechanical braking |
||
