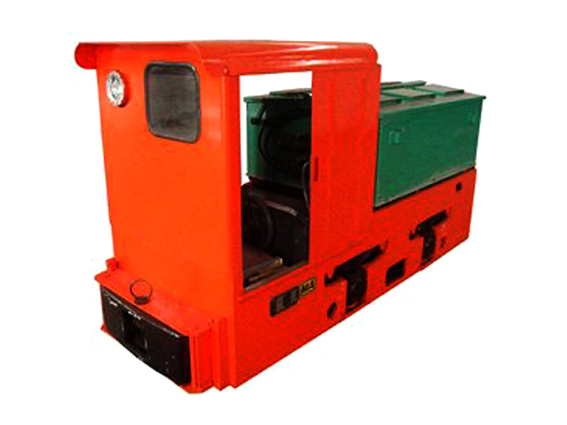

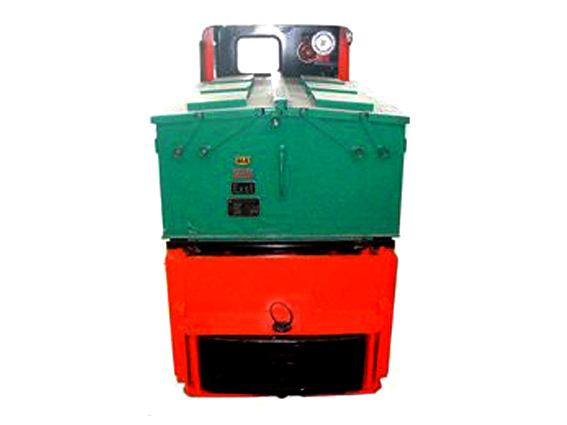

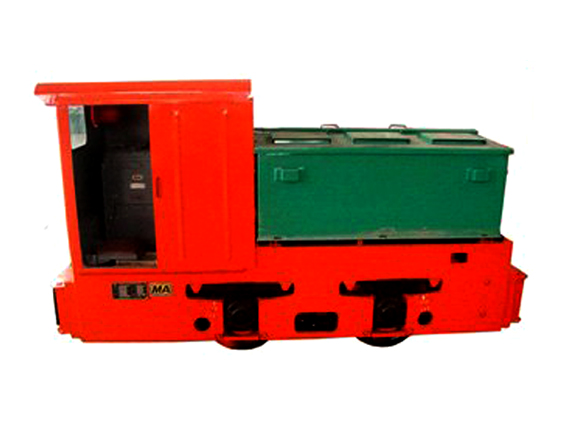

The 5 T battery locomotive can be divided step speed changing and stopless speed changing. The main characteristics of this serial of locomotive: reasonable structure, reliable explosion-proof performance, smooth starting, no obvious impact. Good quality, simple structure, easy to repair and it is well received.
Performance and Parameters
|
Model |
CTY5/6、7、9G(B) |
|
|
Total weight(t) |
5 |
|
|
Trail distance(mm) |
60、762 or 900 |
|
|
Traction force(kn) |
7.06 |
|
|
Max. traction force(kn) |
12.26 |
|
|
Speed (km/h) |
7 |
|
|
Supply unit |
Voltage(v) |
90 |
|
Volume(Ah) |
385 |
|
|
Power(kw)×number |
7.5×2 |
|
|
Dimension |
Length (with roof)(mm) |
2850 |
|
Width (mm) |
920、1082 or 1220 |
|
|
Height(from level to platfond)(mm) |
1550 |
|
|
Wheel distance(mm) |
850 |
|
|
Wheel diameter(mm) |
Φ520 |
|
|
Min. turning radius(m) |
6 |
|
|
Speed adjustment mode |
Resistance or chopper speed control |
|
|
Brake mode |
Mechanical braking |
|
