This plate car has a wide usage: this car adopts underground mining, transporting devices and other stuffs along the underground tunnel. This mining plate car can be used in underground mining, the plate car is able to transport supporting material and other goods along the underground tunnel. The simple mining plate adopts single row radial ball bearing, in the environment which is very bad,like: the road is not plate or the gas is full of dust and gas, this plate car can be working properly, it prolongs the duration of the bearing; the main bearing is simple in structure, cheap and suitable for little tone transportation. This car is suitable in mining the underground coal, and transport along the tunnel.
Simple mining plate car, it adopts variant single row radial ball bearing, the simple mining plate adopts single row radial ball bearing, in the environment which is very bad,like: the road is not plate or the gas is full of dust and gas, this plate car can be working properly, it prolongs the duration of the bearing. It adopts underground mining, transporting devices and other goods along the underground tunnel.

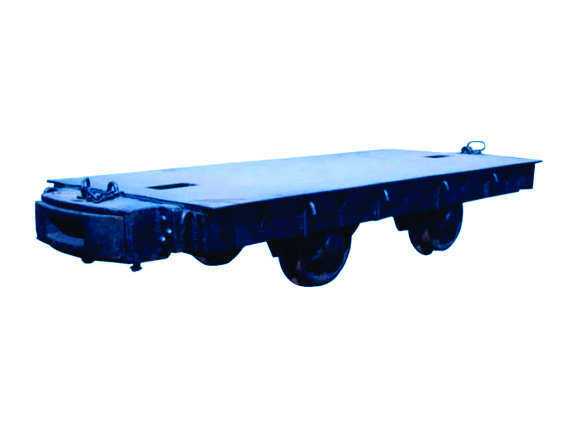

This new box type unpowered flat car is mainly welded by steel plate and cross shape steel, it adopts 8 couples of bearing, they are all installed inside of the box structure, so that it can avoid be rotted and prolong the duration, the box structure is designed according to the standard, it is easy to fix and uninstall, big loading ability, long duration and small shape changing.
The name of the mining car: mining plate car, plate car,This new box type unpowered flat car is mainly welded by steel plate and cross shape steel, it adopts 8 couples of bearing, they are all installed inside of the box structure, so that it can avoid be rotted and prolong the duration, the box structure is designed according to the standard, it is easy to fix and uninstall, big loading ability..
|
Model |
Loading limit (kg) |
Dimension |
Trail distance (mm) |
Wheel distance (mm) |
Wheel diameter (mm) |
Traction height (mm) |
Traction force (kN) |
Min. plate operating radium |
||
|
Length (mm) |
Width (mm) |
Height (mm) |
||||||||
|
CMPC2-6 |
2000 |
2000 |
880 |
410 |
600 |
550 |
300 |
320 |
60 |
9 |
|
CMPC3-6 |
3000 |
2400 |
1050 |
415 |
600 |
750 |
300 |
320 |
60 |
9 |
|
CMPC5-6 |
5000 |
3450 |
1200 |
480 |
600 |
1100 |
350 |
320 |
60 |
12 |
|
CMPC5-9 |
5000 |
3450 |
1320 |
480 |
900 |
1100 |
350 |
320 |
60 |
12 |
|
CMPC10-6 |
10000 |
3460 |
1300 |
304 |
600 |
1100 |
250 |
230 |
60 |
12 |
|
CMPC10-9 |
10000 |
3460 |
1400 |
304 |
900 |
1100 |
250 |
230 |
60 |
12 |
|
CMPC13-6 |
13000 |
3350 |
1300 |
342 |
600 |
1100 |
300 |
270 |
60 |
12 |
|
MPC15-6 |
15000 |
3460 |
1300 |
357 |
600 |
1100 |
300 |
320 |
90 |
12 |
|
CMPC15-9 |
15000 |
3460 |
1300 |
357 |
900 |
1100 |
300 |
320 |
90 |
12 |
|
CMPC18-6 |
18000 |
3350 |
1400 |
346 |
600 |
1100 |
300 |
270 |
60 |
12 |
|
CMPC20-6 |
20000 |
3460 |
1300 |
364 |
600 |
1100 |
300 |
320 |
120 |
12 |
|
CMPC20-9 |
20000 |
3460 |
1300 |
364 |
900 |
1100 |
300 |
320 |
120 |
12 |
|
CMPC25-6 |
25000 |
3460 |
1300 |
390 |
600 |
1600 |
350 |
320 |
140 |
15 |
|
CMPC25-9 |
25000 |
3460 |
1300 |
390 |
900 |
1600 |
350 |
320 |
140 |
15 |
|
CMPC26-6 |
26000 |
2400 |
1462 |
390 |
600 |
1100 |
240 |
280 |
60 |
12 |
|
CMPC30-6 |
30000 |
3460 |
1300 |
400 |
600 |
1600 |
350 |
320 |
170 |
15 |
|
CMPC30-9 |
30000 |
3460 |
1300 |
400 |
900 |
1600 |
350 |
320 |
170 |
15 |
|
Note1: Height H and traction height h is calculated by the trail surface. |
||||||||||
