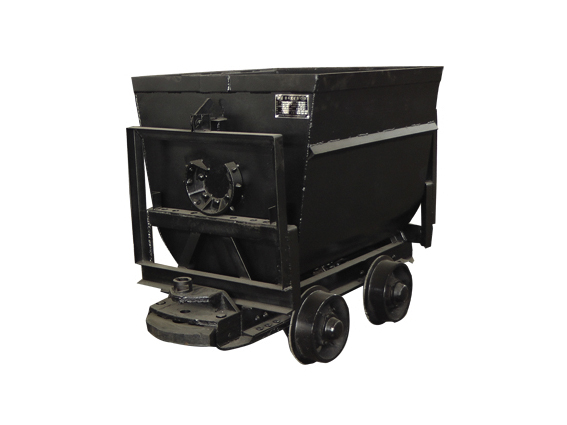

Bucket-tipping mining car is the device used a lot in mining, it is mainly used in transporting coal dirty rocks and materials underground and open mining. It is usually driven by electric engine or winch, which is impact resistant, transporting safe,reliable, and big volume.

The bucket-tipping mining car can be used in the construction of coal, steel and non-steel mining. Such as coal, ore, slag and stone. It is basic composed by carriage, frame, buffer section and the driving parts, the main structure of this CKFU0.75-6 types of bucket-tipping mining car is that there is an arc rolling circle installed on each side of the carriage which is welded up by steels. After the speed killing device is turned on and the body of the carriage in flipped by man power, it can be freely uninstalled, the leaning angle can reach 40degree or more.

The description of the bucket-tipping mining car: the cutting face of the tank of the bucket-car is V shape or U shape, the bearing is on the turn transition of the carriage. The bucket car can be divided into big head and small head. The type of the bucket-tipping mining car are: CKFU0.55-6 type, CKF0.75-6 type. The bucket-tipping mining car can be customized according to the demand of the clients.

The usage of the bucket-tipping mining car: the CKFU0.75-6 type bracket-tipping mining car is widely used in coal, gold, iron ore, gypsum mine and other mines. It is used in transporting goods which is in pieces, like mineral, coal and rock,etc.

The meaning of the symbol:

K: it means that it’s a coal car

F: it means that it’s a bucket-tipping car

U: it means that its shape of the tank

0.75: it means that its volume is 0.75m³

6: it means that the distant this car adopts is 600mm

Maintenance

To ensure the lifetime of the mining car, it should be examined everyday, and maintenance every month to guarantee that the wheel won’t be stuck. Lubricating oil should be regularly added. It should be cleaned once between time to ensure there is enough volume; check the anti off bolt whether it is banded or broke; check the bolt to see whether it is loose. The broken stuff should be timely replaced.

Note

during the progress of the being used, the loading of the mining car should not be more than rated number.

Working under the situation that the connecting part is broken should be forbidden.

The frame will crash the rim of the wheel virulently, so don’t use it when the wheel is in bad condition.

If the bolt or the three ring chain are greatly rotted, they should be not used again.

The touching between two heads of the mining car is forbidden.

The rail should be adjusted in no time when it is changed in shape, or the wheel of the mining car can be damaged and the mining car may jump off the rail.

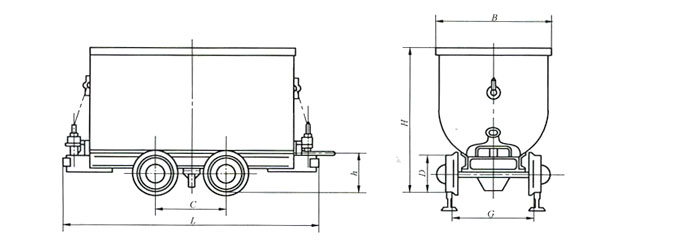

CKFU0.75-6 Type Bucket-tipping car main techinal parameters:
