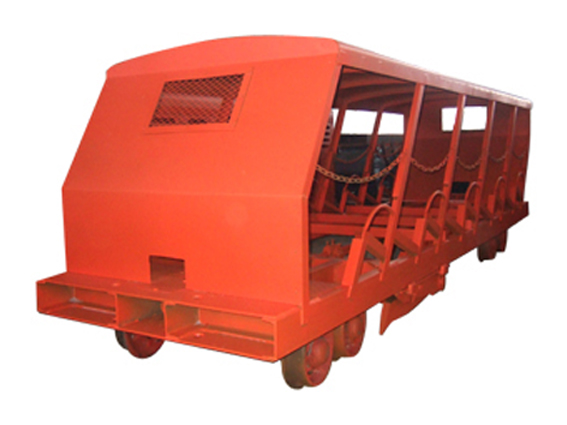

This inclined-shaft man car can be used in transporting stuffs when the leaning angle is below 30°. It is driven by a winch, the head and the hanging part will work in line. The number of the hanging part depends on the leaning degree of the tunnel. To ensure the safety of the stuffs, there is speed killing device on the car, it can be used to stop when the steel wire breaks or obstacle evolved.
Technical parameters
|
Specific |
XRC10-6/6S |
XRC10-6/6W |
XRC15-6/6S |
XRC15-6/6W |
||
|
Max. traction(kn) |
60 |
|||||
|
Max. speed(m/s) |
4 |
|||||
|
Inclined of roadway |
10°-30° |
|||||
|
Curve radium |
Horizontal |
12 |
||||
|
Vertical |
12 |
|||||
|
Track central distance(m) |
3.2 |
|||||
|
Rail distance(mm) |
600 |
|||||
|
Loading limit |
10 |
10 |
15 |
15 |
||
|
Net weight |
Car head(kg) |
1520 |
- |
1595 |
- |
|
|
Car tail(kg) |
- |
1555 |
- |
1630 |
||
|
Dimension |
Length（mm） |
4930 |
5240 |
4930 |
5240 |
|
|
Width (mm) |
1050 |
1050 |
1226 |
1226 |
||
|
Height(mm) |
1474 |
1474 |
1474 |
1474 |
||
