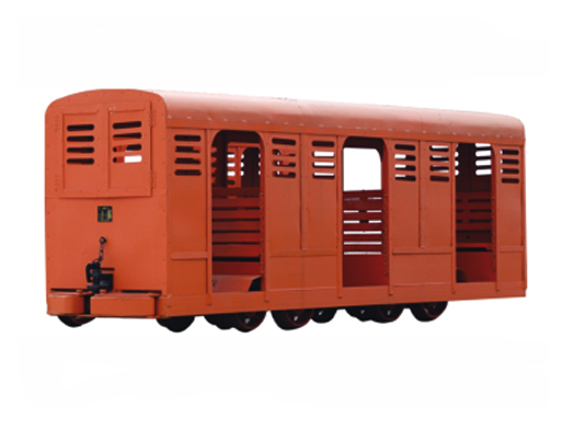

The PRC type tunnel man-bus can be used in transporting people, it is driven by traction locomotive and work in line. To keep stabilized while working, the spring device is loaded, so that the bus can stay steady in both beginning and half.
Technical and parameters
|
Specific |
PRC12-6/3 |
PRC18-9/3 |
|
|
Max. traction(kn) |
30 |
||
|
Max. speed(m/s) |
4 |
||
|
Horizontal turning radius(m) |
8 |
||
|
Track central distance (m) |
1.5 |
||
|
Traction height (mm) |
320-380 |
||
|
Rail distance (mm) |
600 |
900 |
|
|
Loading limit |
12 |
18 |
|
|
Net weight(kg) |
1310 |
1510 |
|
|
Dimension |
Length (mm) |
4280 |
4280 |
|
Width (mm) |
1020 |
1300 |
|
|
Height (mm) |
1535 |
1535 |
|
