Appliance

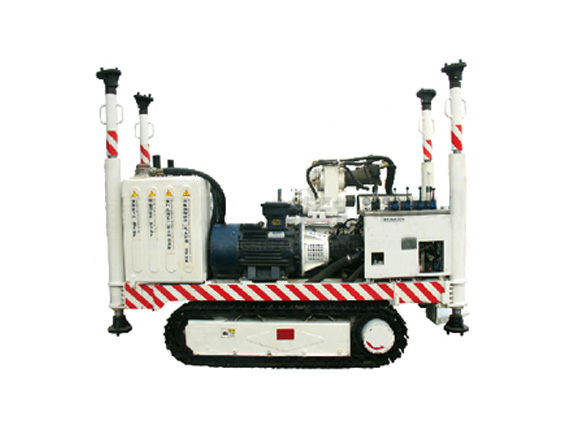

CMS1-2000/45 belongs to track-driven low rolling speed,big torque Deep hole hydraulic jumbo,which is widely used for geological exploration, gas and water drainage, water injection and bolting in coal mines, metal mines and civil tunneling work.
Structure features
The main part of the machine is made up by the main body, Chassis assembly , prop, operating system and other parts.The jumbo has a compact structure, it can be divided into five parts: main frame, chassis assembly, support, control platform and power system. It is the smallest single complete machine with the same drill equipment and can work freely in 1.1 meter wide tunnel, also get through big slope. The drilling platform can 360°turn tracks to drill holes all direction, main system takes pilot control and more precision and fast. It takes advanced technical and special material to reduce weight and increase strength; hydraulic elements uses high-quality brand and tested before delivered to ensure reliability of equipment. The drill machine takes self innovative technology .
Performance and Parameters
|
Performance |
Parameters |
CMS1-2000/45 |
|
|
Jumbo boom number |
1 |
||
|
Operation dimension(L×W×H ) |
3000×1100×1800 |
||
|
Weight(kg) |
4100 |
||
|
Drilling machine |
Type feature |
Hydraulic motor |
|
|
Rotate device |
Rated torque(N.m) |
2000 |
|
|
Rated speed(r/min) |
76 |
||
|
System rated pressure(MPa) |
21 |
||
|
Washing water pressure(MPa) |
0.6~2.5 |
||
|
Diameter of boring(mm) |
Φ94 |
||
|
Drill rod specification(mm) |
Φ63.5/Φ73 Geological drill rod |
||
|
Apothem(mm) |
380 |
||
|
Dimension(L×W×H)(mm) |
2450×660×800 |
||
|
Weight(kg) |
869 |
||
|
Hydraulic system |
Working pressure(MPa) |
21 |
|
|
Motor |
Rated power(kW) |
45 |
|
|
Rated voltage(V) |
660/1140 |
||
|
oil tank(L) |
230 |
||
|
Propeller |
Travel(mm) |
600 |
|
|
Forward force(kN) |
120 |
||
|
Forward speed(mm/min) |
0~2400 |
||
|
No-load return speed(mm/min) |
0~3400 |
||
|
Boom |
Forward compensation travel(mm) |
600 |
|
|
Drilling obliquity(°) |
－25~＋90 |
||
|
Boom rotation angle(°) |
±90 |
||
|
Travel device |
Structure feature |
High concentration of walking motor |
|
|
Walking speed(m/min) |
18（High speed）/8（Low speed） |
||
|
Climbing ability(°) |
±20 |
||
|
Ground pressure(MPa) |
0.1 |
||
|
Auxiliary work unit |
External water supply working pressure(MPa) |
0.6~2.5 |
|
