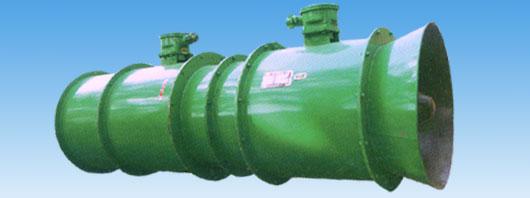

SDF serial of fan is equipped with the feature of high wind pressure, big wind amount ,low voice and other advantages. It can be used in aeration of underground mining and also can be used in the aeration of the tunnel.

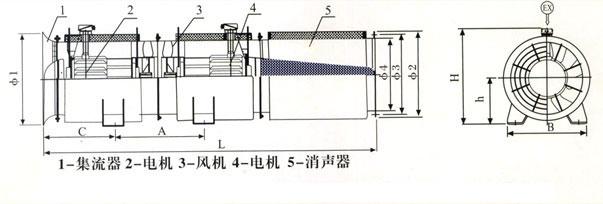

SDF Series Disrotatory Auxiliary Fan Outline Graphs
1-collector 2-motor 3-fan 4-motor 5-silencer
Performance Parameters and Dimension graphs of SDF Series Disrotatory Auxiliary Fan
|
Model |
Matched engine model |
Power |
Air quantity |
Air pressure |
L |
Φ1 |
Φ2 |
Φ3 |
Φ4 |
h |
H |
B |
C |
|
4 |
YBF100L-2 |
2.2×2 |
95~160 |
336~1810 |
1620 |
561 |
403 |
465 |
515 |
250 |
750 |
400 |
340 |
|
YBF100L-2 |
4×2 |
135~180 |
396~2360 |
||||||||||
|
5 |
YBF132S-2 |
5.5×2 |
200~280 |
384~2930 |
1850 |
662 |
504 |
566 |
616 |
350 |
870 |
520 |
450 |
|
YBF132S-2 |
7.5×2 |
210~305 |
444~3050 |
||||||||||
|
5.6 |
YBF160M-2 |
11×2 |
240~360 |
552~3500 |
2340 |
742 |
564 |
634 |
690 |
390 |
940 |
640 |
590 |
|
YBF160M-2 |
15×2 |
280~430 |
600~4000 |
||||||||||
|
YBF160L-2 |
18.5×2 |
355~430 |
720~4850 |
||||||||||
|
6.3 |
YBF160L-2 |
18.5×2 |
300~480 |
4300~600 |
2770 |
820 |
632 |
720 |
770 |
430 |
1020 |
700 |
700 |
|
YBF180L-2 |
22×2 |
360~550 |
780~5200 |
||||||||||
|
7.1 |
YBF200L-2 |
30×2 |
380~640 |
912~5700 |
2980 |
870 |
713 |
790 |
860 |
460 |
1060 |
740 |
525 |
|
YBF200L-2 |
37×2 |
400~695 |
1020~6860 |
||||||||||
|
8 |
YBF225M-2 |
45×2 |
440~920 |
1152~6500 |
3450 |
1080 |
803 |
970 |
1020 |
550 |
1290 |
920 |
900 |
|
YBF250M-2 |
55×2 |
450~980 |
1224~7500 |
||||||||||
|
YBF280S-2 |
75×2 |
520~1150 |
1620~8600 |
||||||||||
|
9 |
YBF200L-4 |
30×2 |
510~1200 |
816~3220 |
3650 |
1220 |
905 |
1100 |
1180 |
630 |
1390 |
1100 |
1050 |
|
10 |
YBF225S-4 |
37×2 |
580~1350 |
948~3460 |
4350 |
1450 |
1005 |
1220 |
1400 |
740 |
1500 |
1300 |
1110 |
|
YBF225M-4 |
45×2 |
620~1380 |
1020~3780 |
