The SF serial of fan is equipped with the feature of energy-saving, big wind amount and low noise, it can be used in the aeration of the underground mining and can also be used in the aeration of the tunnel.

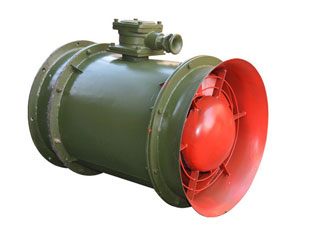

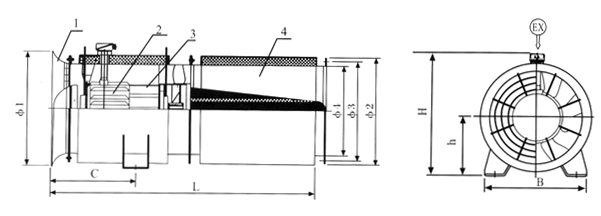

1.FB (BSF) Series Auxiliary Fan Outline Graphs
 Series Auxiliary Fan-2.jpg)
1-collector 2-motor 3-fan 4-silencer
2.Performance Parameters and Dimension of FB (BSF) Series Auxiliary Fan
|
Model |
Matched engine model |
Power |
Air quantity |
Air pressure |
L |
Φ1 |
Φ2 |
Φ3 |
Φ4 |
h |
H |
B |
C |
|
4 |
YBF100L-2 |
2.2 |
80~150 |
160~850 |
1080 |
561 |
403 |
465 |
515 |
250 |
750 |
400 |
340 |
|
YBF100L-2 |
4 |
130~165 |
175~1050 |
||||||||||
|
5 |
YBF132S-2 |
5.5 |
190~260 |
180~1250 |
1185 |
662 |
504 |
566 |
616 |
350 |
870 |
520 |
450 |
|
YBF132S-2 |
7.5 |
200~290 |
230~1550 |
||||||||||
|
5.6 |
YBF160M-2 |
11 |
210~340 |
380~1600 |
1560 |
742 |
564 |
634 |
690 |
390 |
940 |
640 |
590 |
|
YBF160M-2 |
15 |
230~380 |
450~1670 |
||||||||||
|
YBF160L-2 |
18.5 |
325~415 |
650~2150 |
||||||||||
|
6.3 |
YBF180L-2 |
18.5 |
195~315 |
2200~300 |
1890 |
820 |
632 |
720 |
770 |
430 |
1020 |
700 |
700 |
|
YBF180L-2 |
22 |
350~465 |
700~2402 |
||||||||||
|
7.1 |
YBF200L-2 |
30 |
370~600 |
750~2280 |
2150 |
910 |
713 |
810 |
860 |
480 |
1200 |
746 |
820 |
|
YBF200L-2 |
37 |
380~720 |
900~2820 |
||||||||||
|
8 |
YBF225M-2 |
45 |
420~790 |
1100~3750 |
2450 |
1080 |
803 |
970 |
1020 |
550 |
1290 |
920 |
900 |
|
YBF250M-2 |
55 |
430~810 |
1200~3950 |
||||||||||
|
YBF280S-2 |
75 |
470~880 |
1350~4325 |
||||||||||
|
9 |
YBF200L-4 |
30 |
480~1000 |
320~1350 |
2650 |
1220 |
905 |
1100 |
1180 |
630 |
1390 |
1100 |
1050 |
|
10 |
YBF225S-4 |
37 |
560~1350 |
390~1500 |
2950 |
1450 |
1005 |
1220 |
1400 |
740 |
1500 |
1300 |
1110 |
|
YBF225M-4 |
45 |
620~1450 |
420~1900 |
