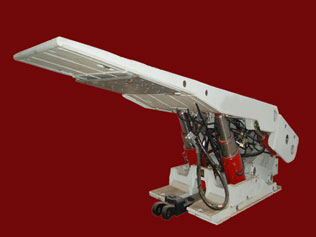

Thin seam hydraulic roof support features: the top beam and the cover beam are equipped with unidirectional movable side guard plate, the front bottom part takes skate form. The bottom board is adopting, made by high- strength steel plate, reliable and lasting. The support takes four connecting rod structure, small in size and light in weight.
Technical Parameter
|
Type |
Work Resistance (kn) |
Initial Supporting Force (kn) |
Support Length (mm) |
Center Distance (mm) |
Supporting Strength (MPa) |
|
ZY2400/5.5/12 |
2400 |
2182 |
550-1200 |
1500 |
0.20-0.25 |
|
ZY2400/06/13 |
2400 |
2182 |
600-1300 |
1500 |
0.28-0.32 |
|
ZY2400/07/14 |
2400 |
2182 |
700-1400 |
1500 |
0.26-0.30 |
|
ZY2400/7.5/14 |
2400 |
2182 |
750-1400 |
1500 |
0.26-0.30 |
|
ZY2400/07/15 |
2400 |
2182 |
750-1500 |
1500 |
0.25-0.30 |
|
ZY2400/08/16 |
2400 |
2182 |
800-1600 |
1500 |
0.30-0.35 |
|
ZY2600/07/14 |
2600 |
2182 |
700-1400 |
1500 |
0.32-0.36 |
|
ZY2600/07/15 |
2600 |
2182 |
700-1500 |
1500 |
0.30-0.35 |
|
ZY2600/08/17 |
2600 |
2182 |
800-1700 |
1500 |
0.34-0.38 |
|
ZY2800/06/13 |
2800 |
2182 |
600-1300 |
1500 |
0.32-0.38 |
|
ZY2800/07/15 |
2800 |
2182 |
700-1500 |
1500 |
0.34-0.40 |
|
ZY3000/6.5/13 |
3000 |
2617 |
650-1300 |
1500 |
0.35-0.40 |
|
ZY3000/07/15 |
3000 |
2617 |
700-1500 |
1500 |
0.35-0.40 |
|
ZY3200/6.5/13 |
3200 |
2617 |
650-1300 |
1500 |
0.34-0.40 |
|
ZY3200/07/15 |
3200 |
2617 |
700-1500 |
1500 |
0.36-0.42 |
|
ZY3200/08/17 |
3200 |
2617 |
800-1700 |
1500 |
0.38-0.42 |
|
ZY3600/07/15X |
3600 |
3094 |
700-1500 |
1500 |
0.40-0.45 |
|
ZY3600/07/15D |
3600 |
3094 |
700-1500 |
1500 |
0.40-0.45 |
|
ZY3600/08/16 |
3600 |
3094 |
800-1600 |
1500 |
0.42-0.48 |
|
ZY3800/6.5/13 |
3800 |
3094 |
650-1300 |
1500 |
0.40-0.45 |
|
ZY3800/07/15 |
3800 |
3094 |
700-1500 |
1500 |
0.42-0.48 |
|
ZY3800/08/16 |
3800 |
3094 |
800-1600 |
1500 |
0.44-0.50 |
|
ZY4000/07/14 |
4000 |
3094 |
700-1400 |
1500 |
0.45-0.50 |
|
ZY4000/08/15 |
4000 |
3094 |
800-1500 |
1500 |
0.46-0.52 |
|
ZY4000/08/16 |
4000 |
3094 |
800-1600 |
1500 |
0.46-0.51 |
|
ZY4400/07/14 |
4400 |
3879 |
700-1400 |
1500 |
0.50-0.55 |
|
ZY4400/08/16 |
4400 |
3879 |
800-1600 |
1500 |
0.52-0.56 |
|
ZY4400/8.5/17 |
4400 |
3879 |
850-1700 |
1500 |
0.55-0.60 |
|
ZY4600/07/14 |
4600 |
3879 |
700-1400 |
1500 |
0.55-0.60 |
|
ZY4600/08/15 |
4600 |
3879 |
800-1500 |
1500 |
0.56-0.62 |
|
ZY5000/07/14 |
5000 |
3879 |
700-1400 |
1500 |
0.65-0.72 |
|
ZY5100/07/15 |
5100 |
3879 |
700-1500 |
1500 |
0.68-0.75 |
