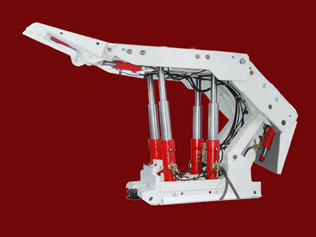

The features of the mesh support: the support adopts four connecting rod structure which raises the anti deflection capacity and the stability of the support, enjoys a better adoption of the changing of the external loading point, big back space which ensures the repairing of the devices.
Technical Parameter
|
Type |
Work Resistance (kn) |
Initial Supporting Force (kn) |
Support Length (mm) |
Center Distance (mm) |
Supporting Strength (MPa) |
|
ZP2800/16/24 |
2800 |
1808 |
1600-2400 |
1500 |
0.45-0.50 |
|
ZP3200/16/26 |
3200 |
2534 |
1600-2600 |
1500 |
0.48-0.52 |
|
ZPY3200/17/28 |
3200 |
2534 |
1700-2800 |
1500 |
0.46-0.50 |
|
ZP4000/17/28 |
4000 |
3206 |
1700-2800 |
1500 |
0.55-0.60 |
|
ZP4000/17/35 |
4000 |
3206 |
1700-3500 |
1500 |
0.58-0.65 |
|
ZP4800/18/38 |
4800 |
3958 |
1800-3800 |
1500 |
0.62-0.68 |
|
ZP5200/16/32 |
5200 |
4364 |
1600-3200 |
1500 |
0.65-0.70 |
|
ZPY5000/18/35 |
5000 |
3879 |
1800-3500 |
1500 |
0.60-0.65 |
|
ZP6000/18/33 |
6000 |
5234 |
1800-3300 |
1500 |
0.75-0.82 |
|
ZP6800/20/38 |
6800 |
6185 |
2000-3800 |
1500 |
0.80-0.88 |
|
ZP7600/20/40 |
7600 |
6185 |
2000-4000 |
1500 |
0.85-0.92 |
|
ZP8000/16/32 |
8000 |
6185 |
1600-3200 |
1500 |
0.90-0.96 |
|
ZP8600/20/42 |
8600 |
7758 |
2000-4200 |
1500 |
0.94-1.02 |
