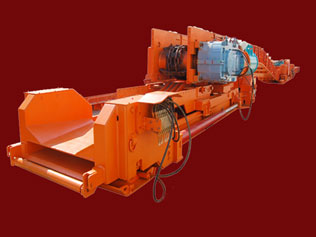

There are two types of reversed loader: middle groove assemble type and whole welding type,they are designed to meet the demand of different customers. The whole welding cabinet type is with the advantages of easy-installing and easy-repairing, the duration of the whole machine(Coal consumption) is 400 thousand to 10 million tones. Scraper conveyors for groove have already become serial, the loading rate is from 40-700Kw, the wideness of the groove is from 630-1200mm, the capacity is from 400-3500 t/h
Technical parameter
|
Type |
Conveying Capacity (t/h) |
Designed Length (m) |
Motor Power (kw) |
Chain Speed (m/s) |
Chain Specs (mm) |
Middle Groove Specification (mm) |
Corollary Equipment |
||
|
Crusher |
Belt Conveyor |
Move Pattern |
|||||||
|
SZB630/40 |
400 |
25 |
40 |
0.854 |
φ18×64-C |
1500×630×190 |
|
|
|
|
SZB630/75 |
600 |
25 |
75 |
1.33 |
φ18×64-C |
1500×630×190 |
|
|
|
|
SZD630/75 |
600 |
25 |
75 |
1.31 |
φ26×92-C |
1500×630×222 |
|
|
|
|
SZD630/90 |
650 |
24 |
90 |
1.31 |
φ26×92-C |
1500×630×222 |
|
|
|
|
SZZ630/90 |
600 |
25 |
90 |
1.07 |
φ26×92-C |
1500×630×222 |
PLM800 |
|
|
|
SZD630/110 |
700 |
24 |
110 |
1.07 |
φ26×92-C |
1500×630×222 |
|
|
|
|
SZB630/110 |
600 |
25 |
110 |
1.07 |
φ22×86-C |
1500×630×222 |
PLM800 |
|
|
|
SZZ630/110 |
700 |
37 |
110 |
1.07 |
φ26×92-C |
1500×630×222 |
PLM800 |
|
|
|
SZB730/40 |
400 |
25 |
40 |
0.854 |
φ18×64-C |
1500×730×190 |
|
|
|
|
SZB730/75 |
630 |
25 |
75 |
1.33 |
φ18×64-C |
1500×730×190 |
|
|
|
|
SZD730/75 |
750 |
24 |
75 |
1.31 |
φ26×92-C |
1500×730×222 |
|
|
|
|
SZD730/90 |
750 |
30 |
90 |
1.31 |
φ26×92-C |
1500×730×222 |
|
|
2LY |
|
SZZ730/90 |
800 |
40 |
90 |
1.07 |
φ26×92-C |
1500×730×222 |
PLM800 |
|
2LY |
|
SZZ730/110 (cabinet) |
700 |
60 |
110 |
1 |
φ26×92-C |
Inside Width 680 |
PLM1000 |
DSJ80 DSJ100 |
Self move ZY800 |
|
SZB730/110 |
700 |
25 |
110 |
1.07 |
φ22×86-C |
1500×730×222 |
PLM1000 |
DSJ80 DSJ100 |
2LY |
|
SZZ730/132 |
700 |
41.2 |
132 |
1.3 |
φ26×92-C |
1500×730×222 |
PLM1000 |
DSJ80 DSJ100 |
2LY, |
|
SZZ730/160 |
1100 |
41.2 |
160 |
1.4 |
φ26×92-C |
1500×730×222 |
PLM1000 |
DSJ80 DSJ100 |
2LY |
|
SZB764/110 |
700 |
29.7 |
110 |
1.07 |
φ22×86-C |
1500×764×222 |
PLM1000 |
DSJ80 DSJ100 |
2LY |
|
SZZ764/132 |
700 |
41.2 |
132 |
1.3 |
φ26×92-C |
1500×764×222 |
PLM1200 |
DSJ80 DSJ100 |
2LY |
|
SZB764/132 |
700 |
29.7 |
132 |
1.34 |
φ22×86-C |
1500×764×222 |
PLM1000 |
DSJ100 |
2LY |
|
SZZ764/160 |
1100 |
41.2 |
160 |
1.3 |
φ26×92-C |
1500×764×222 |
PLM1200 |
DSJ100 DSJ120 |
5LY |
|
SZZ730/200 (cabinet) |
1000 |
50 |
200 |
1.3 |
φ26×92-C |
Inside Width 690 |
PLM1200 |
DSJ100 DSJ120 |
ZY1100 Self move |
|
SZZ764/200 (cabinet) |
1000 |
55 |
200 |
1.3 |
φ26×92-C |
Inside Width 724 |
PLM1200 |
DSJ100 DSJ120 |
ZY1100 Self move |
|
SZZ764/200 |
1000 |
41.2 |
200 |
1.1 |
φ26×92-C |
1500×764×222 |
PLM1200 |
DSJ100 DSJ120 |
ZY1100 Self move |
|
SZZ800/200 (cabinet) |
1200 |
36 |
200 |
1.465 |
φ30×108-C |
Inside Width 770 |
PLM1500 |
|
ZY1100 Self move |
|
SZZ800/250 (cabinet) |
1200 |
36 |
250 |
1.47 |
φ30×108-C |
Inside Width 770 |
PLM1500 |
|
ZY1100 Self move |
|
SZZ800/315 (cabinet) |
1500 |
36 |
315 |
1.47 |
φ30×108-C |
Inside Width 770 |
PLM1500 |
|
ZY1100 Self move |
|
SZZ830/200 (cabinet) |
1200 |
36 |
200 |
1.465 |
φ30×108-C |
Inside Width 780 |
PLM1500 |
|
ZY1100 Self move |
|
SZZ830/220 (cabinet) |
1200 |
36 |
2×110 |
1.48 |
φ30×108-C |
Inside Width 780 |
PLM1500 |
|
ZY1100 Self move |
|
SZZ830/250 (cabinet) |
1200 |
36 |
250 |
1.47 |
φ30×108-C |
Inside Width 780 |
PLM1500 |
|
ZY1100 Self move |
|
SZZ830/315 (cabinet) |
1500 |
36 |
315 |
1.47 |
φ30×108-C |
Inside Width 780 |
PLM1500 |
|
ZY1100 Self move |
|
SZZ800/400 (cabinet) |
1800 |
36 |
400 |
1.56 |
φ34×126-C |
Inside Width 800 |
PLM2000 |
|
ZY1100 Self move |
|
SZZ900/250 (cabinet) |
1500 |
36 |
250 |
1.44 |
φ38×137-C |
Inside Width 900 |
PLM1500 |
|
ZY1100 Self move |
|
SZZ900/315 (cabinet) |
1500 |
36 |
400 |
1.56 |
φ38×137-C |
Inside Width 900 |
PLM1500 |
|
ZY1100 Self move |
|
SZZ900/375 (cabinet) |
1500 |
36 |
375 |
1.42 |
φ38×137-C |
Inside Width 900 |
PLM1500 |
|
ZY1100 Self move |
|
SZZ900/400 (cabinet) |
1800 |
36 |
400 |
1.56 |
φ38×137-C |
Inside Width 900 |
PLM2000 |
|
ZY1100 Self move |
|
SZZ1000/315 (cabinet) |
2000 |
50 |
315 |
1.5 |
φ34×126-C |
Inside Width 1000 |
PLM2000 |
|
ZY1100 Self move |
|
SZZ1000/375 (cabinet) |
2000 |
50 |
375 |
1.49 |
φ34×126-C |
Inside Width 1000 |
PLM2000 |
|
ZY1100 Self move |
|
SZZ1000/400 (cabinet) |
2000 |
50 |
400 |
1.56 |
φ34×126-C |
Inside Width 1000 |
PLM2000 |
|
ZY1100 Self move |
|
SZZ1000/525 (cabinet) |
2500 |
50 |
525 |
1.8 |
φ38×137-C |
Inside Width 1000 |
PLM2500 |
|
ZY1100 Self move |
|
SZZ1200/525 (cabinet) |
2500 |
50 |
525 |
1.8 |
φ38×137-C |
Inside Width 1200 |
PLM2500 |
|
ZY1100 Self move |
|
SZZ1200/700 (cabinet) |
3500 |
50 |
700 |
1.8 |
φ38×137-C |
Inside Width 1200 |
PLM3500 |
|
ZY1100 Self move |
|
SZZ1400/700 (cabinet) |
3500 |
50 |
700 |
1.8 |
φ42×146-C |
Inside Width 1400 |
PLM3500 |
|
ZY1100 Self move |
