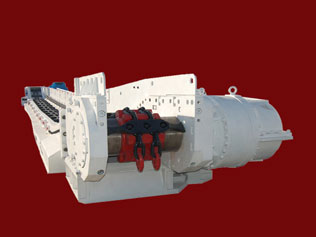

This serial of product is used in inclined thin , mid-thick and thick coal seam of back type fully mechanized coal machine, can be used with coal shearer hydraulic supporter to finish the course of cutting off the coal, loading, transporting ,pushing the supporter and scaffold moving. It’s reliable,compact and adopting.
Technical Parameters
|
Type |
Conveying Capacity (t/h) |
Designed Length (m) |
Motor Power (kw) |
Chain Speed (m/s) |
Type of chain (mm) |
Middle Groove Dimension (L×W×H) |
|
SGB630/180 |
400 |
150 |
2×90 |
1.07 |
φ22×86-C |
1500×630×222 |
|
SGZ630/180 |
400 |
150 |
2×90 |
1.07 |
φ22×86-C |
1500×630×222 |
|
SGD630/220 |
450 |
150 |
2×110 |
1.07 |
φ26×92-C |
1500×630×222 |
|
SGB630/220 |
450 |
150 |
2×110 |
1.07 |
φ22×86-C |
1500×630×222 |
|
SGZ630/220 |
450 |
150 |
2×110 |
1.07 |
φ22×86-C |
1500×630×222 |
|
SGZ630/220(casting) |
450 |
150 |
2×110 |
1.07 |
φ22×86-C |
1500×630×208 |
|
SGZ630/132(casting) |
500 |
75 |
132 |
0.93 |
φ22×86-C |
1500×590×252 |
|
SGZ630/160(casting) |
600 |
75 |
160 |
1.1 |
φ26×92-C |
1500×590×252 |
|
SGZ630/264 |
500 |
150 |
2×132 |
1.07 |
φ26×92-C |
1500×630×222 |
|
SGZ630/264(casting) |
500 |
150 |
2×132 |
0.93 |
φ22×86-C |
1500×590×252 |
|
SGZ630/264(casting) |
500 |
150 |
2×132 |
1.1 |
φ26×92-C |
1500×590×264 |
|
SGZ630/320(casting) |
600 |
150 |
2×160 |
1.1 |
φ26×92-C |
1500×590×264 |
|
SGZ630/200(casting) |
700 |
75 |
200 |
1.1 |
φ26×92-C |
1500×590×264 |
|
SGZ630/400(casting) |
700 |
150 |
2×200 |
1.1 |
φ26×92-C |
1500×590×264 |
|
SGZ730/90 |
400 |
75 |
90 |
1 |
φ26×92-C |
1500×730×222 |
|
SGZ730/180 |
400 |
150 |
2×90 |
1.07 |
φ26×92-C |
1500×730×222 |
|
SGZ730/110 |
450 |
75 |
110 |
1 |
φ26×92-C |
1500×730×222 |
|
SGZ730/220 |
450 |
150 |
2×90 |
1.07 |
φ26×92-C |
1500×730×222 |
|
SGZ730/132 |
500 |
75 |
132 |
1.12 |
φ26×92-C |
1500×730×222 |
|
SGZ730/264 |
500 |
150 |
2×132 |
1.12 |
φ26×92-C |
1500×730×222 |
|
SGB764/132 |
600 |
75 |
132 |
1.12 |
φ22×86-C |
1500×764×222 |
|
SGB764/264 |
600 |
150 |
2×132 |
1.12 |
φ22×86-C |
1500×764×222 |
|
SGZ764/264 |
600 |
150 |
2×132 |
1.12 |
φ26×92-C |
1500×764×222 |
|
SGZ730/160(casting) |
700 |
75 |
160 |
1.1 |
φ26×92-C |
1500×680×300 |
|
SGZ730/320(casting) |
700 |
150 |
2×160 |
1.1 |
φ26×92-C |
1500×680×300 |
|
SGZ730/200(casting) |
800 |
75 |
200 |
1.1 |
φ26×92-C |
1500×680×300 |
|
SGZ730/400(casting) |
800 |
75 |
2×200 |
1.1 |
φ26×92-C |
1500×680×300 |
|
SGB730/200(casting) |
800 |
75 |
200 |
1.1 |
φ26×92-C |
1500×680×300 |
|
SGB730/400(casting) |
800 |
75 |
2×200 |
1.1 |
φ26×92-C |
1500×680×300 |
|
SGZ764/160(casting) |
700 |
75 |
160 |
1.1 |
φ26×92-C |
1500×724×300 |
|
SGZ764/3209(casting) |
700 |
150 |
2×160 |
1.1 |
φ26×92-C |
1500×724×300 |
|
SGB764/160(casting) |
700 |
75 |
160 |
1.1 |
φ26×92-C |
1500×724×300 |
|
SGB730/320(casting) |
700 |
150 |
2×160 |
1.1 |
φ26×92-C |
1500×680×300 |
|
SGZ764/200(casting) |
800 |
75 |
200 |
1.1 |
φ26×92-C |
1500×724×300 |
|
SGZ764/400(casting) |
800 |
150 |
2×200 |
1.1 |
φ26×92-C |
1500×724×300 |
|
SGZ730/250(casting) |
900 |
80 |
250 |
1.02 |
φ30×108-C |
1500×680×300 |
|
SGZ764/250(casting) |
900 |
80 |
250 |
1.02 |
φ30×108-C |
1500×724×300 |
|
SGZ730/315(casting) |
900 |
80 |
315 |
1.02 |
φ30×108-C |
1500×680×300 |
|
SGZ764/315(casting) |
1000 |
80 |
315 |
1.02 |
φ30×108-C |
1500×724×300 |
|
SGZ730/500(casting) |
900 |
200 |
2×250 |
1.02 |
φ30×108-C |
1500×680×300 |
|
SGZ764/500(casting) |
900 |
200 |
2×250 |
1.02 |
φ30×108-C |
1500×724×300 |
|
SGZ730/630(casting) |
900 |
200 |
2×315 |
1.02 |
φ30×108-C |
1500×680×300 |
|
SGZ764/630(casting) |
1000 |
200 |
2×315 |
1.02 |
φ30×108-C |
1500×724×300 |
|
SGZ800/250(casting) |
1000 |
80 |
250 |
1.02 |
φ30×108-C |
1500×800×300 |
|
SGZ800/500(casting) |
1000 |
200 |
2×250 |
1.02 |
φ30×108-C |
1500×800×300 |
|
SGZ800/315(casting) |
1200 |
80 |
315 |
1.02 |
φ30×108-C |
1500×800×300 |
|
SGZ800/630(casting) |
1200 |
200 |
2×315 |
1.02 |
φ30×108-C |
1500×800×300 |
|
SGZ800/375(casting) |
1500 |
100 |
375 |
1.1 |
φ34×126-C |
1503×800×310 |
|
SGZ800/750(casting) |
1500 |
200 |
2×375 |
1.1 |
φ34×126-C |
1503×800×310 |
|
SGZ800/400(casting) |
1500 |
100 |
400 |
1.1 |
φ34×126-C |
1503×800×310 |
|
SGZ800/800(casting) |
1500 |
200 |
2×400 |
1.1 |
φ34×126-C |
1503×800×310 |
|
SGZ830/250(casting) |
1000 |
75 |
250 |
1.02 |
φ30×108-C |
1500×780×300 |
|
SGZ830/500(casting) |
1000 |
200 |
2×250 |
1.02 |
φ30×108-C |
1500×780×300 |
|
SGZ830/315(casting) |
1200 |
75 |
315 |
1.02 |
φ30×108-C |
1500×780×300 |
|
SGZ830/630(casting) |
1200 |
200 |
2×315 |
1.02 |
φ30×108-C |
1500×780×300 |
|
SGZ830/375(casting) |
1500 |
100 |
375 |
1.1 |
φ34×126-C |
1503×780×331 |
|
SGZ830/750(casting) |
1500 |
200 |
2×375 |
1.1 |
φ34×126-C |
1503×780×331 |
|
SGZ830/400(casting) |
1500 |
100 |
400 |
1.1 |
φ34×126-C |
1503×780×331 |
|
SGZ830/800(casting) |
1500 |
200 |
2×400 |
1.1 |
φ34×126-C |
1503×780×331 |
|
SGZ880/375(casting) |
1500 |
100 |
375 |
1.1 |
φ34×126-C |
1503×800×331 |
|
SGZ880/750(casting) |
1500 |
200 |
2×375 |
1.1 |
φ34×126-C |
1503×800×331 |
|
SGZ880/400(casting) |
1500 |
80 |
400 |
1.1 |
φ34×126-C |
1503×800×331 |
|
SGZ880/800(casting) |
1500 |
200 |
2×400 |
1.1 |
φ34×126-C |
1503×800×331 |
