Product Introductions:

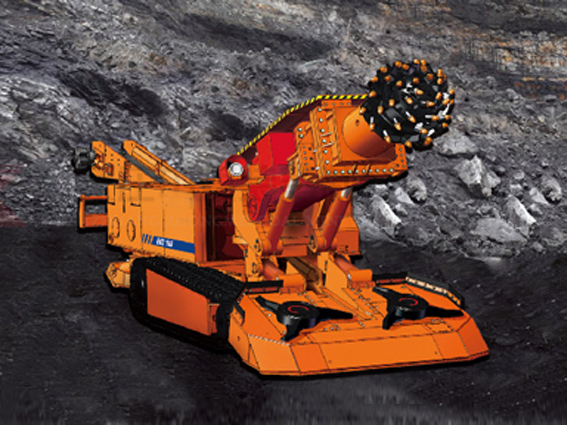

Mainly used in driving tunnel which is made up by half rock and half coal, can be used in mining other mine under similar condition; the adopting angle is among -25°to +18°; the ending part can be connected to a second transporting machine as well as to a mine car, customer should make the order according to their own situation.
Advantage
Stable working rate of and double speed cutting part, big torque of the cutting part, powerful to cut through the rock.
All main parts of the hydraulic pressure adopt international brands, promising and stable.
High working rate hydraulic winch is used to assist its movement, the device is able to be stable and free.
The latest water-absorbing shovel plate reduces water, making it easier to transporting the goods.
The hydraulic system is adjustable which is able to provide power by demands.
The friction moving part(no roller) has a low failure rate, can be relaid on.
The turnover type scraper solves the problem of goods sliding on high shovel,increasing the transporting amount.
The machine weigh 52-55T,promising and reliable.
Parameters
|
Performance |
Model |
EBZ160 |
|
Dimension(m) |
12.6×2.8×1.85 |
|
|
Max. located tunneling height/width(m) |
4.5/5.6 |
|
|
Strength of economic rock cutting unidirectional compressive (MPa) |
≤80 |
|
|
Depth of undercover cutting(mm) |
250 |
|
|
Ground clearance(mm) |
250 |
|
|
Fitting tunnel gradient(°) |
-25~±18 |
|
|
Ground pressure(MPa) |
0.14 |
|
|
Weight(t) |
55 |
|
|
Rated power(kW) |
270 |
|
|
Supply voltage(V) |
1140 |
|
|
Cutting parts |
Power of cutting machine(kW) |
160/160 |
|
Rotate speed of cutting head(r/min) |
65/32 |
|
|
Average single-pole force(N) |
3800/7600 |
|
|
Walking parts |
Walking structure |
Walking speed reducer and motor highly integrated |
|
Walking speed(m/min) |
0-7.6 |
|
|
Hydraulic system |
System type |
loading sensitive constant power variable system |
|
Rated pressure(MPa) |
20 |
|
|
Engine power of pump station(Kw) |
110 |
|
|
Effective volume of oil tank(L) |
630 |
|
|
Shipping parts |
Loading mode |
independent star wheel |
|
Conveying mode |
Double side chain scraper |
|
|
Width of loading shovel plate(m) |
2.8 |
|
|
Rotate speed of the star wheel(r/min) |
29 |
|
|
Chain speed of the conveyor(m/min) |
60 |
|
|
Install ability(m³/h) |
240 |
|
|
Water system |
Dust eliminate mode |
Inside and outside spray |
|
Water supply pressure(MPa) |
3-8 |
|
|
Flow(L/min) |
≥100 |
|
|
Max. non detachable part |
Max. irremovable size (m) |
3.06×1.18×1.442 |
|
Max. irremovable weight (t) |
4.91 |
