Application

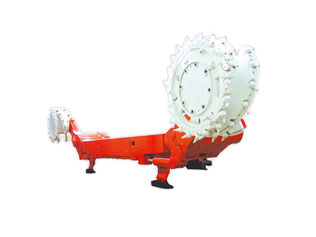

MG610/1400-WD series coal shearer is suitable for the thick seam mechanized mining face, Cutting height range from2.1~4.28m.
Performance and characteristic
Used in mining coal seam of 2.1-4.28m
Speed regulator is located on the machine,walks on the trail.
The working condition is monitored and the related parameter will be displayed in Chinese.
Complete protection and memory function.
Installed with all latest connecting port.
Automatic height-adjusting,three engines can work at the same time.
Can be operated on board and remotely.
The cutting part is installed with speed killer which ensures the security.
Both roller can be adjusted together.

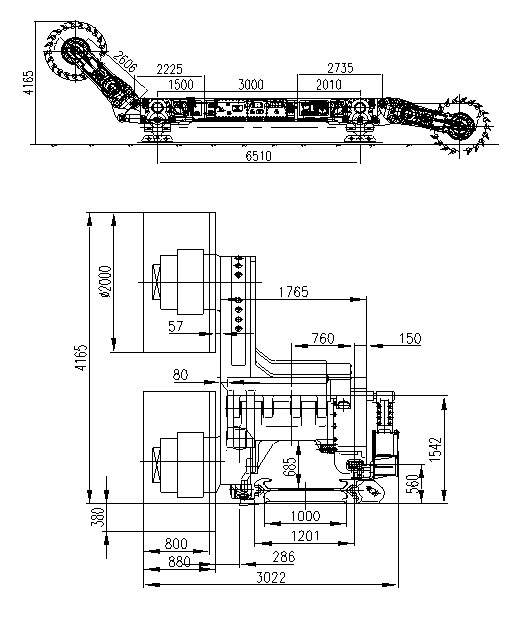

Parameter
|
Model |
MG610/1400-WD |
|
Cutting height range( m) |
2.1~4.165(Ø2.0 roller) |
|
Cutting depth |
0.8 |
|
Adapt dip angle(°) |
≤25 |
|
Roll drum diameter(m) |
Ø2.0; Ø2.24 |
|
Roll drum speed (r/min) |
32.4 |
|
Length of rocker (mm) |
2606 |
|
Rocker arm swinging centre distance( mm) |
7960 |
|
Traction force (kN) |
785/490; 650/410; 540/340 |
|
Roll drum speed (m/min) |
0~10; 0~12; 0~14.5 |
|
Traction mode |
Electrical traction(AC)without chain pin row |
|
Machine height (mm) |
1542 |
|
Minimum dinting capacity (mm) |
380(Ø2.0roller) |
|
Dust suppression mode |
Inside and outside spraying |
|
Installed power (KW) |
2×610+2×75+30 |
|
Voltage (V ) |
3300 |
|
Designed product capacity (t/h) |
1745 |
|
Max. non-detachable component size (mm) |
3000×1580×760 |
|
Weight(t) |
69.6 |
|
Corollary conveyer |
SGZ1000/1050; SGZ900/960 |
