Application

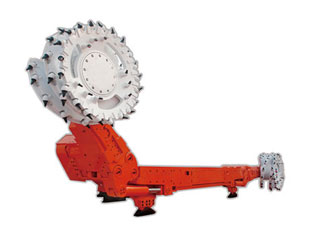

MG500/1180-WD series coal shearer is suitable for thick coal seam mechanized mining face, Cutting height range from 2.3~5m
Performance and characteristic
Can be used in mining coal ream of 2.0-4.6m.
Speed changer is located on the machine, walk on the trail.
Monitor in working condition, all parameters will be displayed in Chinese.
Complete protection and memory function.
Can be connected by latest port.
Height can be adjusted, three units can be adjusted at the same time mostly.
Can be operated manually and remotely.
Safety level is raised by using strong bolt.
Left and right roller can be adjusted at the same time.
Each part is connected to each other by high-strength bolt.
High working rate, is able to cut through hard coal seam and thick.

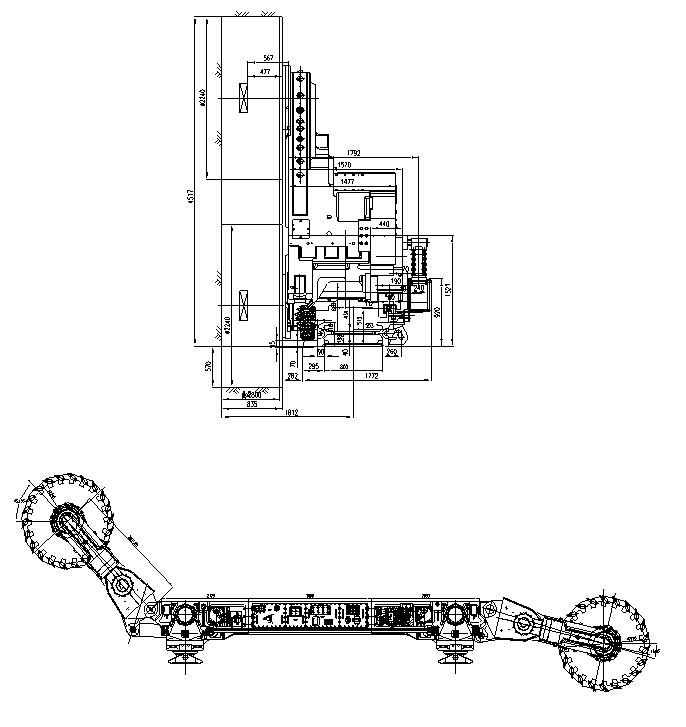

Parameter
|
Model |
MG500/1180-WD( short –size) |
MG500/1180-WD( Basic) |
|
Cutting height range (m) |
2.0~3.8 |
2.3~4.8 |
|
(Ø1.8 roller ) |
(Ø2.24roller) |
|
|
Cutting depth(m) |
0.8; 0.865 |
0.8; 0.865 |
|
Adapt dip angle(°) |
≤35 |
≤35 |
|
Roll drum diameter(m) |
Ø1.8; Ø2.0 |
Ø1.8; Ø2.0; Ø2.24; Ø2.5 |
|
Roll drum speed (r/min) |
35 |
35 |
|
Length of rocker( mm) |
2618(bend rocker arm) |
2891(straight rocker arm); 2618(bend rocker arm); 3291(straight rocker arm) |
|
Rocker arm swinging centre distance( mm) |
8245 |
8245 |
|
Traction force (kN) |
975; 800; 667 |
870; 715; 600 |
|
Traction speed (m/min) |
0~8.3; 0~10.1; 0~12.5 |
0~9.0; 0~10.9; 0~13.16 |
|
Traction mode |
Electric traction (AC) no chain pin row |
Electric traction (AC) no chain pin row |
|
Machine height (mm) |
1382 |
1521 |
|
Minimum dinting capacity( mm ) |
430 |
570 |
|
(Ø1.8 roller) |
(Ø2.24 roller) |
|
|
Dust suppression mode Dust |
Inside and outside spraying |
Inside and outside spraying |
|
Installed power (KW) |
2×500+2×75+30 |
2×500+2×75+30 |
|
Voltage (v) |
3300 |
3300 |
|
Designed product capacity (t/h) |
2800 |
2800 |
|
Max. non-detachable component size (mm) |
3050×1530×880 |
3050×1630×1160 |
|
Weight (t) |
60 |
70 |
|
Corollary conveyer |
SGZ800/1050; SGZ900/2×525; SGZ1000/1050 |
SGZ800/1050; SGZ900/2×525; SGZ1000/1050 |
