Application

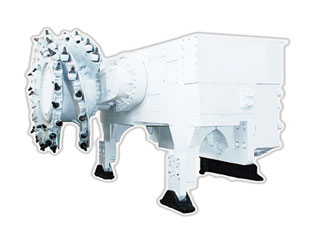

MG300/355-NWD series coal shearer is suitable for middle and thick coal seam mechanized mining face, Cutting height range between2.1~3.9m.
Performance and characteristic
Used in 2.1-3.9m coal seam mining.
Speed changer is loaded on the machine,walk on the trail.
Auto monitor on working condition and shown in Chinese.
Complete exam, protection and memory function.
Can be operated both manual and remote.
Safety degree is raised.
All parts are connected by high-strength bolt.
Parameter
|
Model |
MG200/255-NWD, MG250/305-NWD, MG300/355-NWD |
|
|
Cutting height range( m) |
lower hem2.1~2.7(Ø1.6 roller) |
lower hem 2.6~3.8(Ø2.24 roller ) |
|
upper hem2.1~2.8(Ø1.6 roller ) |
upper hem 2.6~3.9(Ø2.24 roller) |
|
|
Cutting depth(m) |
0.63; 0.80 |
|
|
Adapt dip angle Coal bed pitch (°) |
≤16 |
≤16 |
|
Roll drum diameter (m) |
Ø1.4; Ø1.6 |
Ø1.8; Ø2.0; Ø2.24 |
|
Roll drum speed (r/min) |
29 |
|
|
Length of rocker (mm) |
857 |
1130 |
|
Traction force (kN) |
310 |
|
|
Roll drum speed (m/min) |
0~8.66 |
|
|
Traction mode |
(AC) variable frequency speed regulating without no chain pin row |
|
|
Machine height( mm) |
1587 |
2114 |
|
Minimum dinting capacity( mm ) |
lower hem 517(Ø1.6 roller) |
lower hem 582(Ø2.24 roller) |
|
upper hem 433(Ø1.6 roller) |
upper hem 474(Ø2.24 roller) |
|
|
Dust suppression mode |
Inside and outside spraying |
|
|
Installed power( KW) |
200+55; 250+55; 300+55 |
|
|
Voltage (V) |
1140 |
|
|
Designed product capacity (t/h) |
195 |
|
|
Max. non-detachable component size (mm) |
3502×1060×1015 |
3374×1060×1178 |
|
Weight (t) |
22 |
30 |
|
Corollary conveyer |
SGZ730/110 |
|
