Application

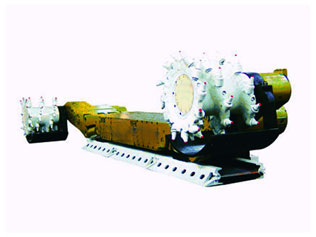

MG100/240-BWD series coal shearer is suitable for very thin coal seam ordinary mining or top grade ordinary mining face, cutting height range from 0.76m to 1.52m.
Performance and characteristic
Used in mining the thin coal seam of 0.76-1.52m
Hydraulic in adjusting the speed move on trail.
Complete protection on over-loading and over-heated,there is no over-heated protection on the pump station.
Mult-point operation, easy to use.
Remotely control.( dry model only)
High working rate. A short, narrow and thin body adopts to thin coal seam.
The main part of the machine is shaped as a tank, high in strength.
The hydraulic and machinery have enough margin, more promising.
The hydraulic system consists of dry-type and wet-type.
The cutting part has been redesigned to raise the efficiency.
The cutting part is installed with speed regulator which increases the security level.
There are side arm type and traditional type of cutting part to be chosen from.
Parameter
|
Model |
MG80/200-BW |
MG100/240-BW |
MG100/240-BWD |
MG100/240-BW |
|
Cutting height range (m) |
0.76~1.4(Ø0.76 roller) |
0.76~1.4(Ø0.76 roller) |
0.76~1.4(Ø0.76 roller) |
0.76~1.4(Ø0.76 roller) |
|
Cutting depth |
0.63 |
0.7 |
0.8 |
0.75 |
|
Adapt dip angle (°) |
≤30 |
≤30 |
≤40 |
＜50 |
|
Roll diameter (m) |
Ø0.76; Ø0.8; Ø0.85; Ø0.9; Ø1.0 |
Ø0.76; Ø0.8; Ø0.85; Ø0.9; Ø1.0 |
Ø0.76; Ø0.8; Ø0.85; Ø0.9; Ø1.0 |
Ø0.76; Ø0.8; Ø0.85; Ø0.9; Ø1.0 |
|
Roll drum speed( r/min) |
90.8 |
90.8 |
90.8 |
90.8 |
|
Length of rocker (mm) |
1406 |
1406 |
1406 |
1422 |
|
Rocker arm oscillation centre (mm) |
3800 |
3800 |
4700 |
4187 |
|
Traction force (kN) |
150 |
150 |
250 |
260 |
|
Traction speed (r/min) |
0~5 |
0~5 |
0~6 |
0~5.2 |
|
Traction mode |
Hydraulic traction without chain |
Hydraulic traction without chain |
Hydraulic traction without chain |
Hydraulic traction without chain |
|
Machine height (mm) |
640 |
640 |
640 |
650 |
|
Minimum dinting capacity (mm) |
60(Ø0.76 roller) |
60(Ø0.76 roller) |
60(Ø0.76 roller) |
120(Ø0.9 roller) |
|
Dust suppression mode |
Inside and outside spraying |
Inside and outside spraying |
Inside and outside spraying |
Inside and outside spraying |
|
Installed power (KW) |
2×80+40 |
2×100+40 |
2×100+2×15+7.5 |
2×100+40 |
|
Voltage (V) |
1140 |
1140 |
1140 |
1140 |
|
Designed product capacity (t/h) |
437 |
437 |
524 |
372 |
|
Max. non-detachable component size (mm) |
3990×1000×432 |
3990×1000×432 |
4890×1140×432 |
4377×1220×432 |
|
Weight (t) |
12 |
12 |
15 |
12.5 |
|
Corollary conveyer |
SGB630/150CT (Equipped with special coal blocking plate) |
SGB630/150CT (Equipped with special coal blocking plate) |
SGB630/150CT |
SGB630/132 |
