Application.

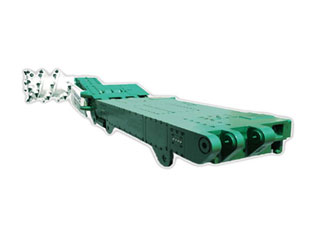

MG2×40/102-TWD series coal shearer is suitable for very thin coal seam ordinary mining or top grade ordinary mining face, Cutting height range from0.65 to 1.75m.
Performance and characteristic
Used in mining the very thin coal seam of 0.65-1.175m
Speed can be changed and the regulator is installed on the trail.
The working condition is monitored and checked, the related parameter will be displayed in Chinese.
Equipped with full protection and memory function.
Can be operated both manually and remotely.
The body of the machine is short, narrow and thin which gives a good adoption to thin coal seam.
The main part of the device is shaped as a box with high strength.
Parameter
|
Model |
Mg2×40/102-twd |
Mg2×40/120-tbw |
|
Cutting height range ( m) |
0.65～1.175(ø0.65 roll drum) |
|
|
Cutting depth (m) |
0.7；0.8 |
|
|
Adapt angle dip° |
≤35 |
≤30 |
|
Roll drum diameter (m) |
Ø0.65 |
|
|
Roll drum speed (r/min) |
92.6 |
|
|
Length of rocker arm (m) |
1569 |
|
|
Rocker arm swing center (mm) |
3045 |
3480 |
|
Traction force (kn) |
180 |
135.8 |
|
Traction speed (m/min) |
0～6 |
0～5.7 |
|
Traction mode |
Electric traction without chain |
Hydraulic no chain electric traction |
|
Machine height ( mm) |
550 |
|
|
Minimum dinting capacity (mm) |
70(ø0.65 roller ) |
80(ø0.65 roller) |
|
Dust suppression way |
Inside and outside spraying |
|
|
Installed power (kw) |
2×40+2×12.5 |
2×40+40 |
|
Voltage (v) |
1140 |
|
|
Designed product capacity (t/h) |
200 |
150 |
|
Max. Non-detachable component size ( mm) |
3235×1184×520 |
3670×1184×520 |
|
Weight (t) |
9 |
8 |
|
Corollary conveyer |
SGB630/150CT (Equipped with special coal blocking plate) |
SGB630/150 (Equipped with special coal blocking plate) |
