Product Introductions

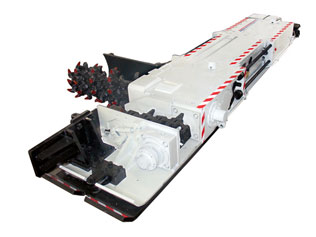

MG100-TP bottom plate type coal mining machine, a single roller fixed on the side,pulled by the anchor chain. This model of heading machine adopts to coal whose angle is under 30°and the very thin coal seam of 0.45-0.9m. The main feature of this heading machine is that it’s a combination of continuously cutting,loading and moving. Its working rate is high, its body is high strength, it’s able to cut through hard coal seam. The hydraulic pulling system is reliable, it’s equipped with speed killer system and broken and protective device. The hydraulic units is reliable, easy to repair. Both inside and outside spray is equipped to reduce the dust while cutting. Individual hydraulic prop and conveyor can be corporately used.
Oder Code: 4102(drum right located), 4103(drum right located)
Parameters
|
Parameters |
Parameters |
MG100-TP |
|
Designed productive capacity（t/h） |
90(diameter of standard drum/450mm) |
|
|
100(diameter of optional drum/540mm) |
||
|
110(diameter of optional drum/600mm) |
||
|
120(diameter of optional drum/710mm) |
||
|
130(diameter of optional drum800mm、900mm) |
||
|
Mining height(mm) |
450~900 |
|
|
Inclination angle(°) |
≤30 |
|
|
Coal hardness |
f≤3 |
|
|
Machine body height(mm) |
380(part/410) |
|
|
Undercutting depth(mm) |
10 (diameter of drum/450,540,60,710mm) |
|
|
15(diameter of drum/800,900mm) |
||
|
Cooling water pressure(MPa) |
3-7 |
|
|
Associated scraper conveyor |
SGB-420、30 |
|
|
Support mode |
Single hydraulic prop |
|
|
Shearer parameters |
Installing power(kW) |
100 |
|
Supply voltage(V) |
660 |
|
|
Traction(kN) |
140 |
|
|
Hydraulic system type |
Closed circuit |
|
|
Hydraulic System pressure(MPa) |
12 |
|
|
Hydraulic tank volume(L) |
100 |
|
|
Haulage speed(m/min) |
0~3.7 |
|
|
Haulage mode |
Hydraulic anchor chain haulage |
|
|
Haulage chain shape |
Φ18×64C Mining high strength ring chain |
|
|
Drum diameter(mm) |
450~900 |
|
|
Drum speed(r/min) |
110 |
|
|
Cutting depth(mm) |
800 |
|
|
Dust suppression |
Inside and outside spray |
|
|
Water supply capacity(L/min) |
40 |
|
|
Dimension(mm) |
5050×1860×450 |
|
|
Max. assembly dimension(mm) |
5036×820×105 |
|
|
Max. assembly weight(kg) |
1800 |
|
|
Weight(kg) |
7300 |
