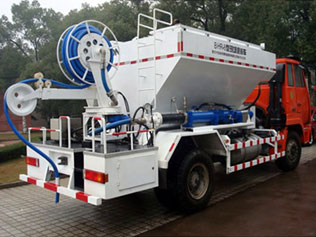

ANFO & Emulsion truck
  • Image 01
  • 1

BRH-15 Emulsion truck utilizes load-sensing proportional hydraulics and a closed loop control system to efficiently and accurately control the ratio of the pumped emulsion and chemical gassing agents. Emulsion is pumped through a progressive cavity pump, while high pressure piston pumps supply gassing agent and water flow. Emulsion hauling capacity is 15MT, and the delivery rate can be varied from 100-300kg/min. The control system is fully automated and features on-board data logging and diagnostics. The emulsion re-pump truck utilizes a configurable static mixer column and water ring lubrication system to reduce pumping pressure through the length of the hose.



BLH-15 ANFO truck utilizes load-sensing proportional hydraulics and a closed loop control system to efficiently and accurately control the mixing and loading of ANFO. The control system delivers automation, wireless remote control, on-board data logging and diagnostics. The body is available with either an overhead or side boom auger configuration. ANFO hauling capacity is 15MT, and the ANFO discharge rate can be varied from 100-1000kg/min. The ANFO unit utilizes proportional computer-control and well-designed diesel fuel injection to increase the wetted surface area of AN prill for maximum fuel distribution and absorption.



BZH quad multi-functional truck utilizes load-sensing proportional hydraulics and a closed loop control system to efficiently and accurately control the mixing ratio of ANFO, emulsion, and chemical gassing agents. The quad vehicle is capable of pumping or augering a full range of bulk products: 100% bulk emulsion, various heavy ANFO blends and100% ANFO. The control system is fully automated and feature on-board data logging and diagnostics. The unit utilizes a configurable static mixer column and water ring lubrication system to reduce pumping pressure through the length of the hose.





BLH-15 ANFO Truck

BRH-15 Emulsion Re-pump Truck

BZH Quad Mixing/Loading Truck

Dimension(mm)

11700×2495×3695

11700×2495×3895

11850×2490×4400mm

Automotive chassis

North-Benz/Shananxi Auto heavy duty truck

North-Benz/Shananxi Auto heavy duty truck

Heavy duty truck SX1316DR366

Max. speed

90km/h

90km/h

90km/h

Max.load

16000kg

16000kg

25000kg

Charging quantity

15000kg

15000kg

Maximum 23400kg

Charging speed

Standard 200-450kg/min Maximum 1000kg/min

120~280kg/min

Standard 200~630kg/min

Maximum 1000kg/min

Filling bore diameter

≥φ90mm

≥φ40mm

≥φ32mm

Hose specification



One hose each for 1”and 2”

One hose each for 1”and 2”

Hose length



40m

40m
