The Electric Shovel buckets are available with a volume of 8m³, 10m³, 12m³, 14m³, 10m³ flat type, 12m³ flat type, as needed. They are suitable for ten-million-ton class large opencast extraction of construction material, hydropower, petrochemical and earthwork engineering; suitable in combination with 100-154 ton trucks, and also at a minimum working temperature of -45°.
|
WK-8 |
|||
|
Bucket volume |
8m³ |
Average bearing pressure |
245kPa |
|
Bucket volume range |
6.3-10m³ |
Main motor |
500kW |
|
Lifting speed |
1m/s |
Max. Excavating radius |
17.4m |
|
Pushing speed |
0.55m/s |
Max. Excavator height |
12.7m |
|
Traveling speed |
0.7km/h |
Max. Dumping radius |
14.2m |
|
Max. Lifting force |
931kN |
Max. Dumping height |
8.05m |
|
Max. Pushing force |
412kN |
Working weight |
340t |
|
Max. Crawling angle |
13º |
Theoretical Productivity |
1100m³ |
|

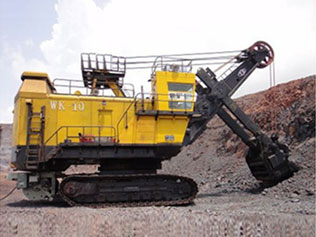

WK-10 |
|||
|
Bucket volume |
12m³ |
Main motor |
750kW |
|
Lifting speed |
1.37m/s |
Max. Excavating Radius |
18.9m |
|
Pushing speed |
0.67m/s |
Max. Excavating Height |
13.53m |
|
Traveling speed |
0.69km/h |
Max. Dumping Radius |
16.25m |
|
Max. Lifting force |
942kN |
Max. Dumping Height |
8.6m |
|
Max. Pushing force |
496kN |
Excavating Depth |
2.2m |
|
Max. Crawling angle |
13° |
Working weight |
490t |
|
Average bearing pressure |
253kPa |
Theoretical Productivity |
1490m³ |
|
WK-12 |
|||
|
Bucket volume |
12m³ |
Lifting motor |
2x350kW/690VAC |
|
Scope of bucket volume |
8m³-16m³ |
Max. Excavating Radius |
18.90m |
|
Lifting speed |
1.50m/s |
Max. Excavating Height |
13.53m |
|
Pushing speed |
0.58m/s |
Max. Dumping Radius |
16.25m |
|
Traveling speed |
0.89km/h |
Max. Dumping Height |
8.60m |
|
Max. Lifting force |
1110kN |
Excavating Depth |
2.20m |
|
Max. Pushing force |
541kN |
Working weight |
490t |
|
Max. Crawling angle |
13° |
Theoretical Productivity |
1490m³/h |
