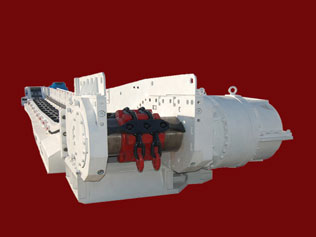

El producto de esta serie se aplica al frente largo de trabajo de extracción mecanizada totalmente en retirada de capas inclinadas finas, de espesor mediano y capas gruesas para transportar mina de carbón, puede ser utilizado con rozadoras, palancas hidráulicas pertinentes, cumple derrumbamiento, carga, transporte del frente de trabajo. Se caracteriza por su estabilidad, estructura compacta, aplicabilidad, etc.
Parámetros Técnicos
|
Tipo |
Capacidad de transporte (t/h) |
Longitud diseñada (m) |
Potencia de motor (kw) |
Velocidad de cadena (m/s) |
Tipo de cadenas ( mm) |
Dimensión de ranura mediana (L×W×H) |
|
SGB630/180 |
400 |
150 |
2×90 |
1.07 |
φ22×86-C |
1500×630×222 |
|
SGZ630/180 |
400 |
150 |
2×90 |
1.07 |
φ22×86-C |
1500×630×222 |
|
SGD630/220 |
450 |
150 |
2×110 |
1.07 |
φ26×92-C |
1500×630×222 |
|
SGB630/220 |
450 |
150 |
2×110 |
1.07 |
φ22×86-C |
1500×630×222 |
|
SGZ630/220 |
450 |
150 |
2×110 |
1.07 |
φ22×86-C |
1500×630×222 |
|
SGZ630/220(casting) |
450 |
150 |
2×110 |
1.07 |
φ22×86-C |
1500×630×208 |
|
SGZ630/132(casting) |
500 |
75 |
132 |
0,93 |
φ22×86-C |
1500×590×252 |
|
SGZ630/160(casting) |
600 |
75 |
160 |
1,1 |
φ26×92-C |
1500×590×252 |
|
SGZ630/264 |
500 |
150 |
2×132 |
1,07 |
φ26×92-C |
1500×630×222 |
|
SGZ630/264(casting) |
500 |
150 |
2×132 |
0,93 |
φ22×86-C |
1500×590×252 |
|
SGZ630/264(casting) |
500 |
150 |
2×132 |
1,1 |
φ26×92-C |
1500×590×264 |
|
SGZ630/320(casting) |
600 |
150 |
2×160 |
1,1 |
φ26×92-C |
1500×590×264 |
|
SGZ630/200(casting) |
700 |
75 |
200 |
1,1 |
φ26×92-C |
1500×590×264 |
|
SGZ630/400(casting) |
700 |
150 |
2×200 |
1,1 |
φ26×92-C |
1500×590×264 |
|
SGZ730/90 |
400 |
75 |
90 |
1 |
φ26×92-C |
1500×730×222 |
|
SGZ730/180 |
400 |
150 |
2×90 |
1,07 |
φ26×92-C |
1500×730×222 |
|
SGZ730/110 |
450 |
75 |
110 |
1 |
φ26×92-C |
1500×730×222 |
|
SGZ730/220 |
450 |
150 |
2×90 |
1,07 |
φ26×92-C |
1500×730×222 |
|
SGZ730/132 |
500 |
75 |
132 |
1,12 |
φ26×92-C |
1500×730×222 |
|
SGZ730/264 |
500 |
150 |
2×132 |
1,12 |
φ26×92-C |
1500×730×222 |
|
SGB764/132 |
600 |
75 |
132 |
1,12 |
φ22×86-C |
1500×764×222 |
|
SGB764/264 |
600 |
150 |
2×132 |
1,12 |
φ22×86-C |
1500×764×222 |
|
SGZ764/264 |
600 |
150 |
2×132 |
1,12 |
φ26×92-C |
1500×764×222 |
|
SGZ730/160(casting) |
700 |
75 |
160 |
1,1 |
φ26×92-C |
1500×680×300 |
|
SGZ730/320(casting) |
700 |
150 |
2×160 |
1,1 |
φ26×92-C |
1500×680×300 |
|
SGZ730/200(casting) |
800 |
75 |
200 |
1,1 |
φ26×92-C |
1500×680×300 |
|
SGZ730/400(casting) |
800 |
75 |
2×200 |
1,1 |
φ26×92-C |
1500×680×300 |
|
SGB730/200(casting) |
800 |
75 |
200 |
1,1 |
φ26×92-C |
1500×680×300 |
|
SGB730/400(casting) |
800 |
75 |
2×200 |
1,1 |
φ26×92-C |
1500×680×300 |
|
SGZ764/160(casting) |
700 |
150 |
160 |
1,1 |
φ26×92-C |
1500×724×300 |
|
SGZ764/3209(casting) |
700 |
150 |
2×160 |
1,1 |
φ26×92-C |
1500×724×300 |
|
SGB764/160(casting) |
700 |
75 |
160 |
1,1 |
φ26×92-C |
1500×724×300 |
|
SGB730/320(casting) |
700 |
150 |
2×160 |
1,1 |
φ26×92-C |
1500×680×300 |
|
SGZ764/200(casting) |
800 |
75 |
200 |
1,1 |
φ26×92-C |
1500×724×300 |
|
SGZ764/400(casting) |
800 |
150 |
2×200 |
1,1 |
φ26×92-C |
1500×724×300 |
|
SGZ730/250(casting) |
900 |
80 |
250 |
1,02 |
φ30×108-C |
1500×680×300 |
|
SGZ764/250(casting) |
900 |
80 |
250 |
1,02 |
φ30×108-C |
1500×724×300 |
|
SGZ730/315(casting) |
900 |
80 |
315 |
1,02 |
φ30×108-C |
1500×680×300 |
|
SGZ764/315(casting) |
1000 |
80 |
315 |
1,02 |
φ30×108-C |
1500×724×300 |
|
SGZ730/500(casting) |
900 |
200 |
2×250 |
1,02 |
φ30×108-C |
1500×680×300 |
|
SGZ764/500(casting) |
900 |
200 |
2×250 |
1,02 |
φ30×108-C |
1500×724×300 |
|
SGZ730/630(casting) |
900 |
200 |
2×315 |
1,02 |
φ30×108-C |
1500×680×300 |
|
SGZ764/630(casting) |
1000 |
200 |
2×315 |
1,02 |
φ30×108-C |
1500×724×300 |
|
SGZ800/250(casting) |
1000 |
80 |
250 |
1,02 |
φ30×108-C |
1500×800×300 |
|
SGZ800/500(casting) |
1000 |
200 |
2×250 |
1,02 |
φ30×108-C |
1500×800×300 |
|
SGZ800/315(casting) |
1200 |
80 |
315 |
1,02 |
φ30×108-C |
1500×800×300 |
|
SGZ800/630(casting) |
1200 |
200 |
2×315 |
1,02 |
φ30×108-C |
1500×800×300 |
|
SGZ800/375(casting) |
1500 |
100 |
375 |
1,1 |
φ34×126-C |
1503×800×310 |
|
SGZ800/750(casting) |
1500 |
200 |
2×375 |
1,1 |
φ34×126-C |
1503×800×310 |
|
SGZ800/400(casting) |
1500 |
100 |
400 |
1,1 |
φ34×126-C |
1503×800×310 |
|
SGZ800/800(casting) |
1500 |
200 |
2×400 |
1,1 |
φ34×126-C |
1503×800×310 |
|
SGZ830/250(casting) |
1000 |
75 |
250 |
1,02 |
φ30×108-C |
1500×780×300 |
|
SGZ830/500(casting) |
1000 |
200 |
2×250 |
1,02 |
φ30×108-C |
1500×780×300 |
|
SGZ830/315(casting) |
1200 |
75 |
315 |
1,02 |
φ30×108-C |
1500×780×300 |
|
SGZ830/630(casting) |
1200 |
200 |
2×315 |
1,02 |
φ30×108-C |
1500×780×300 |
|
SGZ830/375(casting) |
1500 |
100 |
375 |
1,1 |
φ34×126-C |
1503×780×331 |
|
SGZ830/750(casting) |
1500 |
200 |
2×375 |
1,1 |
φ34×126-C |
1503×780×331 |
|
SGZ830/400(casting) |
1500 |
100 |
400 |
1,1 |
φ34×126-C |
1503×780×331 |
|
SGZ830/800(casting) |
1500 |
200 |
2×400 |
1,1 |
φ34×126-C |
1503×780×331 |
|
SGZ880/375(casting) |
1500 |
100 |
375 |
1,1 |
φ34×126-C |
1503×800×331 |
|
SGZ880/750(casting) |
1500 |
200 |
2×375 |
1,1 |
φ34×126-C |
1503×800×331 |
|
SGZ880/400(casting) |
1500 |
80 |
400 |
1,1 |
φ34×126-C |
1503×800×331 |
|
SGZ880/800(casting) |
1500 |
200 |
2×400 |
1,1 |
φ34×126-C |
1503×800×331 |
